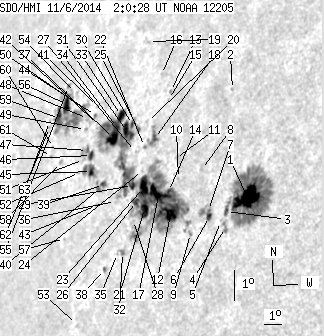

SDO HMI 2014-11-06 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 168.01 | 745.55 | 165.16 | 722.45 | 15.72 | 9.56 | -59.22 | 73.98 | 0.8604 | 133.1 | 122.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.99 | 177.07 | 27.57 | 147.62 | 15.18 | 15.47 | -53.31 | 73.98 | 0.8074 | -872.5 | -357.6 | |
| 0.00 | 0.86 | 0.00 | 0.77 | 18.39 | 13.31 | -55.47 | 70.40 | 0.8320 | -495.0 | -414.8 | |
| 1.64 | -1.00 | 1.40 | -1.00 | 14.71 | 14.54 | -54.24 | 74.68 | 0.8160 | -333.6 | 999999 | |
| 0.00 | 4.49 | 0.00 | 3.81 | 14.22 | 14.66 | -54.12 | 75.25 | 0.8143 | -595.0 | -505.1 | |
| 0.00 | 0.69 | 0.00 | 0.59 | 14.39 | 14.34 | -54.44 | 75.09 | 0.8177 | -263.0 | -246.4 | |
| 2.59 | 12.27 | 2.25 | 10.72 | 14.51 | 13.71 | -55.07 | 75.02 | 0.8239 | -532.6 | 50.1 | |
| 0.26 | -6.00 | 0.23 | -6.00 | 14.68 | 13.58 | -55.19 | 74.82 | 0.8252 | -358.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.47 | 15.89 | 12.72 | -56.06 | 73.47 | 0.8345 | 378.0 | 334.5 | |
| 0.00 | 1.81 | 0.00 | 1.61 | 13.95 | 12.88 | -55.90 | 75.78 | 0.8312 | -503.0 | -391.0 | |
| 0.00 | 0.78 | 0.00 | 0.72 | 15.55 | 11.56 | -57.22 | 74.00 | 0.8447 | 673.0 | 558.4 | |
| 0.00 | 0.95 | 0.00 | 0.89 | 16.14 | 11.12 | -57.65 | 73.35 | 0.8491 | 680.0 | 580.7 | |
| 10.28 | 381.08 | 9.43 | 371.86 | 14.48 | 11.55 | -57.23 | 75.27 | 0.8439 | -121.4 | 248.8 | |
| 0.00 | 1.12 | 0.00 | 1.09 | 18.14 | 9.83 | -58.95 | 71.18 | 0.8622 | 559.0 | 532.2 | |
| 1.21 | -12.00 | 1.12 | -12.00 | 15.13 | 11.17 | -57.61 | 74.54 | 0.8479 | 782.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.75 | 17.89 | 9.84 | -58.94 | 71.46 | 0.8618 | 615.0 | 552.7 | |
| 0.00 | 0.69 | 0.00 | 0.69 | 18.62 | 9.00 | -59.78 | 70.73 | 0.8695 | 434.0 | 435.9 | |
| 16.76 | -12.00 | 15.78 | -12.00 | 15.01 | 10.63 | -58.14 | 74.73 | 0.8525 | 1028.4 | 999999 | |
| 2.25 | 12.09 | 2.18 | 11.79 | 16.68 | 9.62 | -59.16 | 72.90 | 0.8626 | 770.8 | 546.9 | |
| 0.00 | 0.86 | 0.00 | 0.90 | 19.57 | 7.58 | -61.20 | 69.82 | 0.8817 | 505.0 | 426.3 | |
| 0.00 | 1.12 | 0.00 | 1.12 | 17.16 | 8.93 | -59.84 | 72.41 | 0.8687 | 522.0 | 483.7 | |
| 10.80 | -12.00 | 10.32 | -12.00 | 14.55 | 10.00 | -58.77 | 75.33 | 0.8577 | -335.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.61 | 16.40 | 9.14 | -59.64 | 73.26 | 0.8664 | 639.0 | 591.1 | |
| 13.04 | -12.00 | 12.62 | -12.00 | 15.17 | 9.67 | -59.11 | 74.63 | 0.8610 | 702.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.84 | 15.68 | 9.37 | -59.40 | 74.08 | 0.8639 | 399.0 | 347.1 | |
| 0.00 | 2.68 | 0.00 | 2.69 | 16.89 | 8.51 | -60.26 | 72.76 | 0.8719 | 658.0 | 571.5 | |
| 4.15 | -12.00 | 4.03 | -12.00 | 14.73 | 9.44 | -59.33 | 75.16 | 0.8626 | -286.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.60 | 16.22 | 8.67 | -60.10 | 73.51 | 0.8701 | 583.0 | 572.6 | |
| 0.00 | 0.95 | 0.00 | 0.92 | 14.16 | 9.51 | -59.27 | 75.83 | 0.8617 | -150.0 | -150.1 | |
| 3.37 | -12.00 | 3.32 | -12.00 | 15.20 | 8.99 | -59.79 | 74.67 | 0.8668 | -220.6 | 999999 | |
| 1.90 | -12.00 | 1.94 | -12.00 | 17.02 | 8.06 | -60.72 | 72.66 | 0.8757 | 427.9 | 999999 | |
| 11.23 | -12.00 | 11.49 | -12.00 | 16.79 | 7.86 | -60.91 | 72.94 | 0.8771 | 697.7 | 999999 | |
| 0.00 | 2.85 | 0.00 | 2.78 | 13.17 | 9.25 | -59.53 | 76.99 | 0.8633 | -638.0 | -503.7 | |
| 6.56 | -12.00 | 6.86 | -12.00 | 17.25 | 7.22 | -61.56 | 72.48 | 0.8826 | 512.8 | 999999 | |
| 4.92 | -12.00 | 5.15 | -12.00 | 16.88 | 7.17 | -61.61 | 72.91 | 0.8827 | 608.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.93 | 13.12 | 8.97 | -59.81 | 77.07 | 0.8658 | -355.0 | -309.7 | |
| 0.00 | 1.12 | 0.00 | 1.13 | 14.66 | 8.17 | -60.60 | 75.35 | 0.8732 | 223.0 | 266.8 | |
| 9.50 | -12.00 | 9.96 | -12.00 | 16.53 | 7.09 | -61.68 | 73.30 | 0.8830 | -290.5 | 999999 | |
| 0.78 | 1.99 | 0.78 | 1.99 | 12.60 | 8.37 | -60.41 | 77.70 | 0.8706 | -279.7 | -236.7 | |
| 2.16 | 9.07 | 2.25 | 9.48 | 15.12 | 7.18 | -61.60 | 74.89 | 0.8815 | -442.8 | 90.3 | |
| 1.30 | -39.00 | 1.36 | -39.00 | 14.96 | 6.94 | -61.84 | 75.10 | 0.8834 | 455.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.86 | 17.43 | 5.48 | -63.30 | 72.43 | 0.8959 | 378.0 | 365.1 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 16.89 | 5.81 | -62.97 | 73.01 | 0.8931 | 524.0 | 598.0 | |
| 0.00 | 1.12 | 0.00 | 1.17 | 14.47 | 7.04 | -61.73 | 75.64 | 0.8823 | 429.0 | 392.9 | |
| 0.52 | 2.33 | 0.57 | 2.58 | 17.15 | 5.51 | -63.26 | 72.74 | 0.8955 | 613.2 | 600.1 | |
| 4.06 | 17.36 | 4.36 | 18.71 | 15.47 | 6.21 | -62.57 | 74.58 | 0.8893 | 553.7 | 28.9 | |
| 3.54 | 11.23 | 3.84 | 12.29 | 15.94 | 5.95 | -62.83 | 74.06 | 0.8916 | -298.6 | 60.8 | |
| 1.30 | -46.00 | 1.42 | -46.00 | 16.08 | 5.59 | -63.18 | 73.94 | 0.8943 | -244.0 | 999999 | |
| 0.00 | 5.01 | 0.00 | 5.61 | 17.03 | 5.02 | -63.75 | 72.91 | 0.8990 | 474.0 | 466.3 | |
| 0.00 | 1.30 | 0.00 | 1.45 | 16.69 | 5.09 | -63.69 | 73.28 | 0.8984 | -8.0 | 17.7 | |
| 2.07 | 73.50 | 2.36 | 86.58 | 17.31 | 4.56 | -64.22 | 72.64 | 0.9025 | 614.9 | 406.6 | |
| 0.00 | 1.21 | 0.00 | 1.33 | 15.79 | 5.48 | -63.30 | 74.26 | 0.8950 | 199.0 | 123.8 | |
| 0.00 | 1.12 | 0.00 | 1.24 | 15.39 | 5.43 | -63.35 | 74.71 | 0.8952 | -403.0 | -378.8 | |
| 0.00 | 0.43 | 0.00 | 0.45 | 10.87 | 7.25 | -61.53 | 79.73 | 0.8793 | -352.0 | -337.2 | |
| 0.00 | 0.35 | 0.00 | 0.41 | 17.76 | 3.67 | -65.11 | 72.21 | 0.9090 | 325.0 | 341.2 | |
| 0.78 | 1.55 | 0.94 | 1.87 | 17.90 | 3.04 | -65.74 | 72.10 | 0.9135 | 7.3 | 45.8 | |
| 9.07 | -50.00 | 10.82 | -50.00 | 17.36 | 3.27 | -65.51 | 72.68 | 0.9116 | 452.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.95 | 13.37 | 5.42 | -63.35 | 76.97 | 0.8944 | 434.0 | 384.7 | |
| 0.00 | 2.07 | 0.00 | 2.40 | 15.61 | 3.94 | -64.83 | 74.56 | 0.9061 | -226.0 | -62.3 | |
| 8.98 | -50.00 | 10.81 | -50.00 | 16.91 | 3.04 | -65.74 | 73.18 | 0.9130 | 456.7 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.55 | 16.02 | 3.17 | -65.61 | 74.15 | 0.9117 | 413.0 | 465.1 | |
| 0.00 | 1.12 | 0.00 | 1.34 | 15.75 | 3.19 | -65.59 | 74.45 | 0.9115 | 515.0 | 497.4 | |
| 0.00 | 1.04 | 0.00 | 1.27 | 16.60 | 2.48 | -66.30 | 73.56 | 0.9166 | 460.0 | 393.4 | |
| 0.00 | 0.60 | 0.00 | 0.74 | 16.78 | 2.36 | -66.42 | 73.37 | 0.9175 | 186.0 | 223.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
