SDO HMI 2014-11-06 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.33 | 0.00 | 5.25 | -22.38 | 78.58 | 10.90 | 201.54 | 0.4805 | 566.7 | 442.9 | |
|
previous
or next observation for the same group /

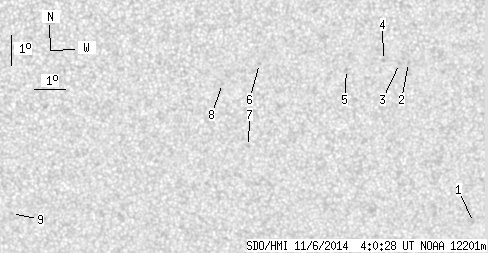

back to the solar disc SDO HMI 2014-11-06 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.57 | -26.31 | 84.45 | 16.77 | 207.35 | 0.5652 | -876.0 | -540.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -20.89 | 81.62 | 13.94 | 208.36 | 0.4757 | 716.0 | 568.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -20.92 | 81.32 | 13.64 | 207.83 | 0.4739 | 708.0 | 466.3 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -20.81 | 80.79 | 13.11 | 207.02 | 0.4687 | 849.0 | 639.4 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -21.09 | 79.61 | 11.93 | 204.64 | 0.4645 | 740.0 | 476.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -20.85 | 76.77 | 9.09 | 199.49 | 0.4445 | 758.0 | 617.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -23.60 | 76.59 | 8.91 | 197.14 | 0.4838 | 783.0 | 573.5 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -21.49 | 75.62 | 7.94 | 196.72 | 0.4484 | 654.0 | 528.2 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -25.81 | 68.89 | 1.21 | 182.19 | 0.4974 | 768.0 | 576.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
