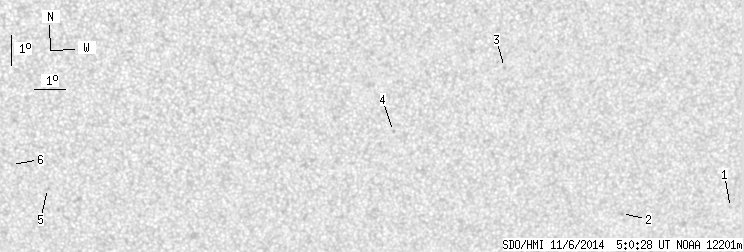

SDO HMI 2014-11-06 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.17 | 0.00 | 4.16 | -24.69 | 76.69 | 9.56 | 196.37 | 0.5184 | -186.0 | -185.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.48 | -26.18 | 88.20 | 21.07 | 213.01 | 0.5944 | -665.0 | -530.4 | |
| 0.00 | 1.90 | 0.00 | 1.14 | -26.29 | 84.39 | 17.26 | 208.03 | 0.5682 | -478.0 | -391.5 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -21.30 | 79.86 | 12.73 | 205.86 | 0.4727 | 646.0 | 533.1 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -23.37 | 76.39 | 9.26 | 197.92 | 0.4820 | 720.0 | 613.4 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -25.23 | 65.11 | -2.02 | 176.25 | 0.4892 | -573.0 | -544.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -24.42 | 63.95 | -3.18 | 173.91 | 0.4783 | -766.0 | -506.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
