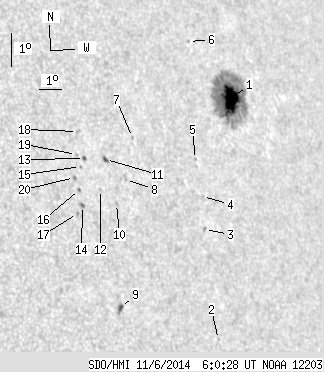

SDO HMI 2014-11-06 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.24 | 168.63 | 22.04 | 131.37 | 13.42 | 116.85 | 50.26 | 284.22 | 0.7734 | -332.8 | -243.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.53 | 142.71 | 19.45 | 113.05 | 13.80 | 117.65 | 51.06 | 284.62 | 0.7829 | -1009.9 | -327.8 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 6.65 | 115.52 | 48.93 | 275.48 | 0.7546 | -430.0 | -385.1 | |
| 0.00 | 1.38 | 0.00 | 1.04 | 9.95 | 115.44 | 48.85 | 279.86 | 0.7551 | -628.0 | -559.8 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 10.94 | 115.56 | 48.97 | 281.16 | 0.7572 | 225.0 | 313.5 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 12.06 | 115.50 | 48.91 | 282.64 | 0.7577 | -624.0 | -505.2 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 15.61 | 116.19 | 49.61 | 287.17 | 0.7700 | 371.0 | 342.9 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 12.85 | 112.83 | 46.25 | 284.09 | 0.7284 | 485.0 | 421.3 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 11.61 | 112.24 | 45.66 | 282.47 | 0.7198 | 512.0 | 457.5 | |
| 1.64 | 3.80 | 1.14 | 2.65 | 7.81 | 111.36 | 44.78 | 277.22 | 0.7057 | -615.6 | -527.9 | |
| 0.00 | 1.30 | 0.00 | 0.91 | 10.92 | 111.71 | 45.12 | 281.57 | 0.7126 | 612.0 | 502.1 | |
| 1.12 | 2.33 | 0.79 | 1.64 | 12.25 | 111.52 | 44.93 | 283.47 | 0.7120 | 615.3 | 479.9 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 11.37 | 111.11 | 44.53 | 282.29 | 0.7060 | 548.0 | 442.6 | |
| 0.52 | 1.47 | 0.36 | 1.02 | 12.32 | 110.63 | 44.04 | 283.72 | 0.7015 | 659.8 | 556.1 | |
| 0.43 | 1.73 | 0.30 | 1.19 | 10.92 | 110.27 | 43.68 | 281.78 | 0.6950 | 730.0 | 634.9 | |
| 0.00 | 1.04 | 0.00 | 0.72 | 12.09 | 110.41 | 43.83 | 283.43 | 0.6985 | 486.0 | 517.7 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 11.41 | 110.23 | 43.65 | 282.48 | 0.6953 | 686.0 | 505.4 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 10.70 | 110.01 | 43.43 | 281.49 | 0.6917 | 726.0 | 666.9 | |
| 0.00 | 1.47 | 0.00 | 1.02 | 13.15 | 110.52 | 43.93 | 284.91 | 0.7015 | 636.0 | 475.5 | |
| 0.00 | 1.30 | 0.00 | 0.89 | 12.46 | 110.32 | 43.73 | 283.97 | 0.6980 | 601.0 | 552.8 | |
| 0.00 | 1.55 | 0.00 | 1.07 | 11.78 | 110.10 | 43.51 | 283.03 | 0.6941 | 813.0 | 731.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
