SDO HMI 2014-11-06 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.37 | 0.00 | 5.85 | -21.89 | 76.66 | 11.17 | 202.38 | 0.4793 | 457.1 | 425.9 | |
|
previous
or next observation for the same group /

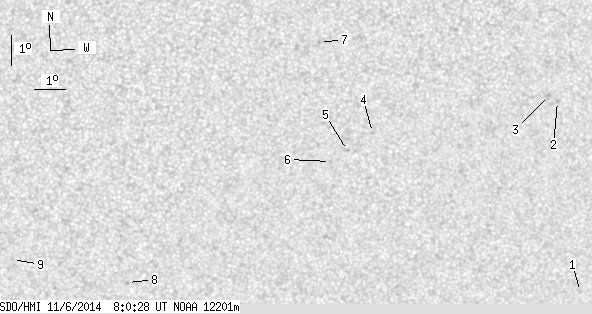

back to the solar disc SDO HMI 2014-11-06 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.52 | -26.32 | 84.43 | 18.94 | 210.24 | 0.5799 | -591.0 | -543.6 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -19.94 | 82.76 | 17.27 | 214.87 | 0.4900 | 753.0 | 643.3 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -19.74 | 82.44 | 16.95 | 214.63 | 0.4848 | 899.0 | 714.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -20.84 | 76.79 | 11.29 | 203.73 | 0.4567 | 702.0 | 534.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -21.42 | 76.02 | 10.52 | 201.77 | 0.4602 | 752.0 | 655.5 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -21.78 | 75.49 | 10.00 | 200.49 | 0.4624 | 739.0 | 590.8 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.90 | 74.90 | 9.41 | 202.83 | 0.4027 | 837.0 | 675.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -25.78 | 69.05 | 3.55 | 186.44 | 0.4992 | 712.0 | 601.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -24.98 | 65.25 | -0.24 | 179.54 | 0.4840 | -689.0 | -405.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
