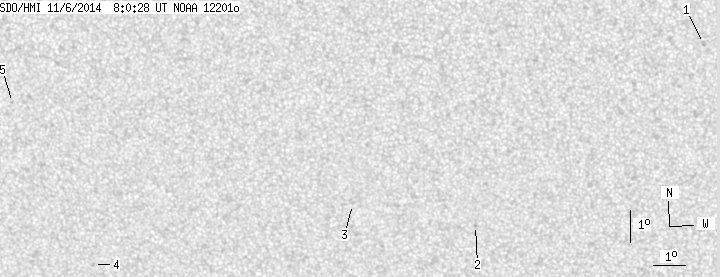

SDO HMI 2014-11-06 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.74 | 0.00 | 3.61 | -15.92 | 60.25 | -5.25 | 169.09 | 0.3732 | 70.8 | 111.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.99 | 0.00 | 1.03 | -12.14 | 70.43 | 4.93 | 197.00 | 0.2888 | 462.0 | 459.0 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -17.84 | 63.43 | -2.07 | 174.69 | 0.3725 | 861.0 | 554.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -17.18 | 59.60 | -5.89 | 164.69 | 0.3731 | 520.0 | 490.4 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -19.20 | 51.24 | -14.25 | 149.16 | 0.4554 | -778.0 | -575.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -14.09 | 49.06 | -16.43 | 138.04 | 0.4122 | -711.0 | -523.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
