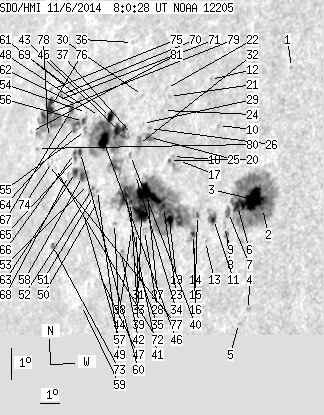

SDO HMI 2014-11-06 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 172.60 | 775.86 | 154.69 | 685.13 | 15.67 | 9.78 | -55.71 | 73.64 | 0.8294 | 60.7 | 142.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.81 | 19.32 | 15.90 | -49.59 | 68.08 | 0.7769 | -563.0 | -452.4 | |
| 0.26 | 183.56 | 0.20 | 142.68 | 14.98 | 16.07 | -49.42 | 73.60 | 0.7671 | -1021.3 | -347.1 | |
| 28.42 | -2.00 | 22.10 | -2.00 | 15.23 | 15.51 | -49.98 | 73.38 | 0.7735 | -949.4 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.64 | 11.92 | 16.26 | -49.23 | 77.56 | 0.7612 | -724.0 | -555.2 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 11.48 | 15.90 | -49.60 | 78.18 | 0.7647 | -594.0 | -539.7 | |
| 2.94 | -2.00 | 2.32 | -2.00 | 15.01 | 14.86 | -50.64 | 73.76 | 0.7801 | -569.6 | 999999 | |
| 2.16 | 5.01 | 1.71 | 3.98 | 14.78 | 14.49 | -51.00 | 74.12 | 0.7836 | -482.7 | -327.6 | |
| 0.95 | 3.20 | 0.75 | 2.53 | 14.12 | 14.61 | -50.89 | 74.94 | 0.7815 | -606.0 | -482.6 | |
| 0.00 | 2.85 | 0.00 | 2.26 | 14.35 | 14.43 | -51.06 | 74.67 | 0.7836 | -481.0 | -406.3 | |
| 0.00 | 0.86 | 0.00 | 0.71 | 17.38 | 13.04 | -52.45 | 71.10 | 0.8021 | -481.0 | -343.5 | |
| 2.25 | 10.88 | 1.81 | 8.78 | 14.53 | 13.83 | -51.66 | 74.52 | 0.7901 | -583.8 | -189.8 | |
| 0.00 | 0.69 | 0.00 | 0.59 | 18.75 | 12.03 | -53.47 | 69.60 | 0.8140 | -322.0 | -335.0 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 13.85 | 13.65 | -51.84 | 75.40 | 0.7912 | -505.0 | -394.5 | |
| 0.86 | 383.26 | 0.71 | 341.40 | 14.61 | 13.00 | -52.49 | 74.54 | 0.7987 | -319.8 | 301.9 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 13.77 | 13.13 | -52.37 | 75.58 | 0.7965 | -485.0 | -398.7 | |
| 1.38 | -14.00 | 1.13 | -14.00 | 14.03 | 12.99 | -52.50 | 75.26 | 0.7982 | -353.3 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.47 | 16.22 | 11.42 | -54.07 | 72.78 | 0.8162 | 401.0 | 371.9 | |
| 0.00 | 1.30 | 0.00 | 1.11 | 16.32 | 11.06 | -54.44 | 72.71 | 0.8198 | 650.0 | 614.3 | |
| 5.36 | -14.00 | 4.52 | -14.00 | 14.39 | 11.63 | -53.86 | 74.99 | 0.8121 | -424.8 | 999999 | |
| 0.52 | 6.22 | 0.45 | 5.32 | 16.19 | 10.95 | -54.54 | 72.88 | 0.8207 | 703.0 | 505.4 | |
| 0.00 | 1.64 | 0.00 | 1.45 | 18.12 | 10.10 | -55.40 | 70.68 | 0.8311 | 708.0 | 623.7 | |
| 0.00 | 0.78 | 0.00 | 0.69 | 18.35 | 9.82 | -55.67 | 70.45 | 0.8340 | 428.0 | 351.9 | |
| 2.07 | -14.00 | 1.77 | -14.00 | 14.79 | 11.17 | -54.32 | 74.55 | 0.8170 | 1037.8 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.31 | 17.68 | 9.97 | -55.52 | 71.23 | 0.8317 | 312.0 | 297.2 | |
| 3.20 | 7.51 | 2.85 | 6.72 | 16.83 | 9.59 | -55.91 | 72.30 | 0.8342 | 745.6 | 662.3 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 17.10 | 9.46 | -56.03 | 72.00 | 0.8357 | 681.0 | 640.1 | |
| 23.32 | -14.00 | 20.43 | -14.00 | 15.11 | 10.19 | -55.30 | 74.29 | 0.8267 | 1032.7 | 999999 | |
| 0.00 | 3.46 | 0.00 | 3.00 | 14.02 | 10.44 | -55.06 | 75.57 | 0.8234 | -680.0 | -514.8 | |
| 0.00 | 0.60 | 0.00 | 0.55 | 17.23 | 9.01 | -56.49 | 71.90 | 0.8399 | 469.0 | 426.1 | |
| 0.00 | 1.21 | 0.00 | 1.11 | 18.07 | 8.60 | -56.90 | 70.96 | 0.8446 | 450.0 | 394.7 | |
| 17.97 | -14.00 | 15.75 | -14.00 | 14.55 | 10.08 | -55.42 | 74.97 | 0.8273 | -61.1 | 999999 | |
| 0.00 | 7.34 | 0.00 | 6.64 | 16.58 | 9.08 | -56.42 | 72.66 | 0.8386 | 765.0 | 650.7 | |
| 0.00 | 1.04 | 0.00 | 0.91 | 13.94 | 10.03 | -55.46 | 75.71 | 0.8272 | -549.0 | -481.2 | |
| 0.00 | 1.12 | 0.00 | 1.01 | 15.67 | 9.30 | -56.19 | 73.71 | 0.8356 | 552.0 | 436.0 | |
| 0.00 | 1.73 | 0.00 | 1.51 | 13.24 | 10.06 | -55.43 | 76.56 | 0.8263 | 580.0 | 496.7 | |
| 0.00 | 1.04 | 0.00 | 1.00 | 19.64 | 7.16 | -58.34 | 69.33 | 0.8588 | 451.0 | 396.8 | |
| 0.00 | 0.78 | 0.00 | 0.71 | 16.87 | 8.61 | -56.89 | 72.38 | 0.8432 | 536.0 | 475.8 | |
| 0.00 | 0.78 | 0.00 | 0.69 | 13.99 | 9.74 | -55.75 | 75.69 | 0.8300 | -356.0 | -337.6 | |
| 1.64 | -14.00 | 1.47 | -14.00 | 14.82 | 9.37 | -56.12 | 74.73 | 0.8342 | -243.9 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.81 | 16.23 | 8.78 | -56.71 | 73.12 | 0.8409 | 561.0 | 607.8 | |
| 15.38 | -14.00 | 13.86 | -14.00 | 15.05 | 9.00 | -56.49 | 74.50 | 0.8378 | -251.7 | 999999 | |
| 0.00 | 2.50 | 0.00 | 2.22 | 13.27 | 9.45 | -56.04 | 76.58 | 0.8322 | -772.0 | -567.2 | |
| 13.30 | -14.00 | 12.43 | -14.00 | 16.92 | 7.83 | -57.67 | 72.42 | 0.8501 | 674.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.10 | 14.15 | 8.74 | -56.76 | 75.60 | 0.8394 | -390.0 | -272.9 | |
| 5.53 | -14.00 | 5.28 | -14.00 | 17.31 | 7.10 | -58.39 | 72.05 | 0.8568 | 603.3 | 999999 | |
| 11.92 | -14.00 | 11.37 | -14.00 | 16.60 | 7.04 | -58.46 | 72.89 | 0.8567 | -417.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.63 | 12.58 | 8.47 | -57.03 | 77.48 | 0.8409 | -441.0 | -350.9 | |
| 0.00 | 0.60 | 0.00 | 0.59 | 17.30 | 6.44 | -59.05 | 72.13 | 0.8624 | 506.0 | 377.4 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 15.08 | 7.38 | -58.11 | 74.62 | 0.8524 | -420.0 | -336.0 | |
| 0.00 | 1.21 | 0.00 | 1.13 | 14.75 | 7.52 | -57.97 | 75.00 | 0.8509 | 532.0 | 486.1 | |
| 0.00 | 1.12 | 0.00 | 1.06 | 14.92 | 7.22 | -58.28 | 74.83 | 0.8537 | 303.0 | 239.3 | |
| 0.52 | 3.20 | 0.49 | 3.04 | 15.12 | 7.07 | -58.43 | 74.60 | 0.8552 | -467.8 | -1.8 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 15.23 | 6.78 | -58.71 | 74.51 | 0.8577 | -86.0 | -94.8 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 17.38 | 5.60 | -59.90 | 72.14 | 0.8695 | 418.0 | 407.7 | |
| 0.00 | 2.85 | 0.00 | 2.81 | 16.84 | 5.82 | -59.67 | 72.74 | 0.8671 | 686.0 | 608.2 | |
| 1.90 | 24.01 | 1.89 | 24.29 | 17.10 | 5.56 | -59.94 | 72.47 | 0.8695 | 672.3 | 432.4 | |
| 0.00 | 0.78 | 0.00 | 0.74 | 14.35 | 6.87 | -58.63 | 75.53 | 0.8564 | 485.0 | 434.7 | |
| 3.71 | 21.42 | 3.60 | 20.93 | 15.45 | 6.32 | -59.18 | 74.29 | 0.8619 | 646.0 | 70.2 | |
| 0.00 | 1.04 | 0.00 | 0.96 | 11.60 | 7.77 | -57.73 | 78.69 | 0.8468 | -305.0 | -283.7 | |
| 2.25 | 8.03 | 2.21 | 7.95 | 16.16 | 5.86 | -59.64 | 73.52 | 0.8663 | -357.4 | -169.2 | |
| 0.00 | 1.12 | 0.00 | 1.14 | 17.78 | 4.99 | -60.50 | 71.75 | 0.8747 | 392.0 | 369.8 | |
| 0.00 | 0.69 | 0.00 | 0.70 | 17.56 | 4.93 | -60.57 | 72.01 | 0.8750 | 532.0 | 450.2 | |
| 3.63 | -58.00 | 3.57 | -58.00 | 15.55 | 5.85 | -59.65 | 74.23 | 0.8659 | -438.9 | 999999 | |
| 4.66 | -56.00 | 4.70 | -56.00 | 16.92 | 5.15 | -60.35 | 72.71 | 0.8727 | 115.5 | 999999 | |
| 0.78 | -60.00 | 0.77 | -60.00 | 15.96 | 5.64 | -59.85 | 73.76 | 0.8680 | -371.1 | 999999 | |
| 1.21 | -60.00 | 1.20 | -60.00 | 16.11 | 5.51 | -59.99 | 73.61 | 0.8692 | -164.6 | 999999 | |
| 2.85 | -56.00 | 2.92 | -56.00 | 17.42 | 4.62 | -60.87 | 72.20 | 0.8774 | 565.3 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.46 | 15.43 | 5.47 | -60.03 | 74.39 | 0.8690 | -453.0 | -388.4 | |
| 0.00 | 0.95 | 0.00 | 0.99 | 18.07 | 4.05 | -61.45 | 71.52 | 0.8824 | 217.0 | 206.7 | |
| 0.00 | 1.73 | 0.00 | 1.82 | 17.83 | 3.72 | -61.77 | 71.82 | 0.8847 | 452.0 | 364.6 | |
| 0.00 | 0.86 | 0.00 | 0.91 | 17.64 | 3.57 | -61.92 | 72.05 | 0.8858 | 439.0 | 460.7 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 15.60 | 4.57 | -60.93 | 74.28 | 0.8765 | -256.0 | -233.0 | |
| 1.04 | 2.42 | 1.03 | 2.39 | 13.29 | 5.43 | -60.07 | 76.86 | 0.8681 | 439.9 | 320.7 | |
| 0.00 | 1.21 | 0.00 | 1.25 | 15.80 | 4.27 | -61.22 | 74.08 | 0.8790 | -123.0 | -66.9 | |
| 0.00 | 1.04 | 0.00 | 1.12 | 17.95 | 2.98 | -62.52 | 71.76 | 0.8905 | 81.0 | 99.6 | |
| 7.77 | 50.62 | 8.32 | 53.92 | 17.40 | 3.24 | -62.25 | 72.35 | 0.8881 | 486.4 | 500.4 | |
| 0.00 | 0.69 | 0.00 | 0.72 | 15.69 | 4.06 | -61.43 | 74.21 | 0.8806 | -89.0 | -47.6 | |
| 0.00 | 2.76 | 0.00 | 2.91 | 16.50 | 3.63 | -61.86 | 73.34 | 0.8845 | 417.0 | 351.3 | |
| 2.85 | -76.00 | 3.08 | -76.00 | 17.14 | 2.93 | -62.57 | 72.68 | 0.8904 | 451.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.29 | 16.13 | 3.10 | -62.39 | 73.80 | 0.8884 | 625.0 | 582.3 | |
| 0.00 | 0.69 | 0.00 | 0.76 | 16.61 | 2.41 | -63.08 | 73.31 | 0.8939 | 218.0 | 292.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
