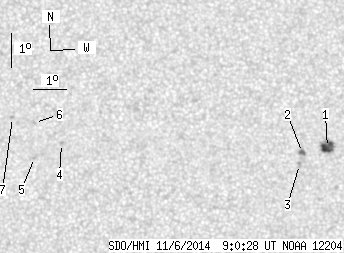

SDO HMI 2014-11-06 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.59 | 24.00 | 4.82 | 12.05 | 5.67 | 72.89 | 7.94 | 291.24 | 0.1453 | -310.7 | -230.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.21 | 13.21 | 4.13 | 6.65 | 5.63 | 75.14 | 10.19 | 280.42 | 0.1799 | -1188.0 | -852.4 | |
| 1.38 | 3.20 | 0.69 | 1.61 | 5.49 | 74.38 | 9.43 | 280.35 | 0.1666 | -1191.9 | -934.0 | |
| 0.00 | 1.81 | 0.00 | 0.91 | 5.13 | 74.29 | 9.34 | 278.30 | 0.1641 | -958.0 | -840.2 | |
| 0.00 | 1.55 | 0.00 | 0.77 | 5.81 | 67.15 | 2.20 | 312.17 | 0.0518 | 1036.0 | 778.4 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 5.40 | 66.34 | 1.39 | 318.51 | 0.0367 | 875.0 | 707.4 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.44 | 66.35 | 1.40 | 331.97 | 0.0518 | 822.0 | 695.3 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.59 | 65.69 | 0.74 | 345.07 | 0.0500 | 903.0 | 745.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
