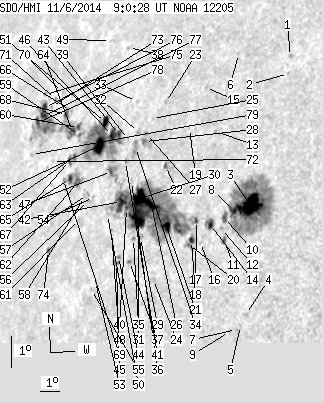

SDO HMI 2014-11-06 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.60 | 787.14 | 147.11 | 684.20 | 15.65 | 9.89 | -55.06 | 73.57 | 0.8232 | 1.7 | 136.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 1.01 | 19.83 | 15.77 | -49.18 | 67.33 | 0.7738 | -505.0 | -426.9 | |
| 0.00 | 1.12 | 0.00 | 0.87 | 19.30 | 15.89 | -49.06 | 67.97 | 0.7714 | -352.0 | -373.6 | |
| 30.40 | 189.07 | 23.39 | 145.32 | 15.22 | 15.54 | -49.41 | 73.29 | 0.7673 | -927.4 | -340.2 | |
| 0.00 | 2.07 | 0.00 | 1.56 | 11.94 | 16.22 | -48.73 | 77.47 | 0.7556 | -672.0 | -601.2 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 11.60 | 16.07 | -48.88 | 77.94 | 0.7569 | -562.0 | -493.7 | |
| 0.00 | 0.86 | 0.00 | 0.71 | 19.80 | 13.19 | -51.76 | 67.97 | 0.7994 | -289.0 | -295.7 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 11.48 | 15.91 | -49.04 | 78.13 | 0.7585 | -568.0 | -512.0 | |
| 2.85 | -3.00 | 2.22 | -3.00 | 15.03 | 14.79 | -50.16 | 73.66 | 0.7751 | -588.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 11.40 | 15.61 | -49.34 | 78.26 | 0.7619 | -492.0 | -428.8 | |
| 2.42 | 5.44 | 1.90 | 4.27 | 14.80 | 14.43 | -50.52 | 74.01 | 0.7786 | -491.5 | -351.9 | |
| 1.38 | 3.54 | 1.08 | 2.77 | 14.11 | 14.64 | -50.31 | 74.87 | 0.7754 | -535.2 | -429.9 | |
| 0.00 | 1.38 | 0.00 | 1.09 | 14.46 | 14.39 | -50.56 | 74.45 | 0.7785 | -541.0 | -410.7 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 17.37 | 13.06 | -51.89 | 71.01 | 0.7965 | -404.0 | -329.1 | |
| 2.85 | 8.64 | 2.27 | 6.88 | 14.55 | 13.82 | -51.13 | 74.42 | 0.7846 | -546.4 | -245.7 | |
| 0.00 | 0.52 | 0.00 | 0.43 | 18.68 | 11.99 | -52.96 | 69.59 | 0.8091 | -468.0 | -347.2 | |
| 0.00 | 1.30 | 0.00 | 1.04 | 13.99 | 13.51 | -51.44 | 75.18 | 0.7872 | -401.0 | -338.6 | |
| 1.12 | 261.79 | 0.91 | 223.49 | 14.64 | 13.10 | -51.85 | 74.41 | 0.7922 | -301.8 | 299.4 | |
| 2.33 | 9.41 | 1.88 | 7.60 | 14.03 | 13.05 | -51.90 | 75.19 | 0.7920 | -315.6 | -263.8 | |
| 0.00 | 0.52 | 0.00 | 0.44 | 17.39 | 11.71 | -53.24 | 71.21 | 0.8098 | -126.0 | -87.0 | |
| 0.60 | -18.00 | 0.49 | -18.00 | 13.90 | 12.94 | -52.01 | 75.36 | 0.7930 | -430.7 | 999999 | |
| 5.79 | -17.00 | 4.82 | -17.00 | 14.38 | 11.66 | -53.29 | 74.92 | 0.8064 | -431.3 | 999999 | |
| 1.04 | 5.53 | 0.88 | 4.69 | 16.21 | 10.93 | -54.02 | 72.78 | 0.8158 | 643.5 | 581.9 | |
| 0.00 | 1.12 | 0.00 | 0.98 | 18.11 | 10.11 | -54.84 | 70.60 | 0.8260 | 715.0 | 660.8 | |
| 0.00 | 2.59 | 0.00 | 2.16 | 12.77 | 11.52 | -53.43 | 76.94 | 0.8063 | -500.0 | -363.5 | |
| 0.00 | 0.69 | 0.00 | 0.61 | 17.59 | 9.63 | -55.32 | 71.30 | 0.8297 | 599.0 | 562.4 | |
| 7.86 | -17.00 | 6.72 | -17.00 | 15.00 | 10.65 | -54.30 | 74.29 | 0.8170 | 1039.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.15 | 17.12 | 9.52 | -55.43 | 71.88 | 0.8302 | 655.0 | 630.3 | |
| 1.12 | 7.95 | 0.99 | 6.99 | 16.88 | 9.51 | -55.44 | 72.17 | 0.8299 | 753.3 | 656.5 | |
| 0.00 | 4.06 | 0.00 | 3.48 | 13.99 | 10.44 | -54.51 | 75.56 | 0.8181 | -653.0 | -499.6 | |
| 15.46 | -17.00 | 13.43 | -17.00 | 15.15 | 9.96 | -54.99 | 74.20 | 0.8239 | 1023.1 | 999999 | |
| 11.23 | -17.00 | 9.70 | -17.00 | 14.49 | 10.15 | -54.80 | 74.98 | 0.8213 | -357.7 | 999999 | |
| 0.00 | 2.33 | 0.00 | 2.08 | 17.13 | 9.07 | -55.88 | 71.93 | 0.8344 | 609.0 | 534.1 | |
| 0.00 | 0.78 | 0.00 | 0.71 | 18.06 | 8.51 | -56.44 | 70.91 | 0.8405 | 490.0 | 380.7 | |
| 0.00 | 7.60 | 0.00 | 6.78 | 16.67 | 9.11 | -55.84 | 72.48 | 0.8335 | 838.0 | 669.5 | |
| 0.00 | 1.47 | 0.00 | 1.27 | 13.94 | 10.08 | -54.87 | 75.65 | 0.8215 | -560.0 | -454.9 | |
| 0.00 | 2.33 | 0.00 | 2.06 | 15.64 | 9.33 | -55.62 | 73.69 | 0.8303 | 316.0 | 319.7 | |
| 0.52 | 1.38 | 0.45 | 1.19 | 13.24 | 10.11 | -54.84 | 76.50 | 0.8207 | 551.8 | 407.2 | |
| 0.00 | 1.21 | 0.00 | 1.14 | 19.67 | 7.20 | -57.75 | 69.21 | 0.8539 | 543.0 | 468.6 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 16.89 | 8.62 | -56.33 | 72.28 | 0.8382 | 424.0 | 440.3 | |
| 0.86 | -17.00 | 0.76 | -17.00 | 14.81 | 9.38 | -55.57 | 74.67 | 0.8290 | -379.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.93 | 16.22 | 8.75 | -56.20 | 73.06 | 0.8363 | 721.0 | 656.7 | |
| 13.56 | -17.00 | 12.05 | -17.00 | 15.01 | 9.03 | -55.92 | 74.48 | 0.8325 | -320.0 | 999999 | |
| 2.94 | 105.29 | 2.69 | 98.76 | 17.01 | 8.05 | -56.90 | 72.21 | 0.8435 | 651.2 | 355.0 | |
| 0.35 | 1.47 | 0.30 | 1.28 | 13.36 | 9.48 | -55.47 | 76.42 | 0.8268 | -583.5 | -472.9 | |
| 0.86 | 3.20 | 0.76 | 2.80 | 13.14 | 9.44 | -55.51 | 76.68 | 0.8270 | -574.2 | -427.3 | |
| 7.60 | -43.00 | 7.03 | -43.00 | 16.96 | 7.67 | -57.28 | 72.32 | 0.8468 | 651.8 | 999999 | |
| 2.42 | 11.92 | 2.21 | 10.84 | 15.88 | 8.10 | -56.85 | 73.54 | 0.8418 | 219.1 | 181.2 | |
| 0.00 | 1.12 | 0.00 | 1.00 | 14.11 | 8.82 | -56.13 | 75.57 | 0.8336 | -402.0 | -330.4 | |
| 0.00 | 0.26 | 0.00 | 0.25 | 19.83 | 6.01 | -58.94 | 69.21 | 0.8640 | 333.0 | 378.0 | |
| 0.00 | 1.47 | 0.00 | 1.32 | 14.58 | 8.42 | -56.53 | 75.05 | 0.8378 | 305.0 | 179.7 | |
| 5.61 | -43.00 | 5.28 | -43.00 | 17.33 | 7.08 | -57.87 | 71.96 | 0.8523 | 583.4 | 999999 | |
| 11.75 | -43.00 | 11.03 | -43.00 | 16.62 | 7.07 | -57.88 | 72.79 | 0.8517 | -390.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.85 | 12.55 | 8.49 | -56.46 | 77.48 | 0.8356 | -433.0 | -361.4 | |
| 0.00 | 0.95 | 0.00 | 0.88 | 15.05 | 7.43 | -57.52 | 74.60 | 0.8471 | -347.0 | -388.1 | |
| 0.00 | 1.21 | 0.00 | 1.09 | 12.30 | 8.35 | -56.60 | 77.79 | 0.8367 | -329.0 | -302.1 | |
| 0.00 | 1.73 | 0.00 | 1.61 | 14.94 | 7.19 | -57.76 | 74.75 | 0.8492 | 247.0 | 206.0 | |
| 0.00 | 1.47 | 0.00 | 1.37 | 15.12 | 7.05 | -57.90 | 74.56 | 0.8505 | -501.0 | -392.5 | |
| 0.00 | 1.47 | 0.00 | 1.38 | 15.05 | 6.91 | -58.04 | 74.65 | 0.8518 | 424.0 | 231.2 | |
| 0.78 | 87.41 | 0.76 | 89.72 | 16.86 | 5.76 | -59.19 | 72.66 | 0.8632 | 580.6 | 436.9 | |
| 1.55 | -59.00 | 1.52 | -59.00 | 17.10 | 5.57 | -59.38 | 72.41 | 0.8649 | 673.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.89 | 14.34 | 6.85 | -58.10 | 75.48 | 0.8517 | 478.0 | 404.8 | |
| 4.40 | 15.81 | 4.21 | 15.19 | 15.44 | 6.32 | -58.63 | 74.25 | 0.8572 | 571.9 | 71.3 | |
| 1.55 | 7.95 | 1.51 | 7.74 | 16.21 | 5.77 | -59.18 | 73.41 | 0.8625 | -490.4 | -299.3 | |
| 4.15 | -59.00 | 4.10 | -59.00 | 16.96 | 5.28 | -59.67 | 72.60 | 0.8673 | -24.9 | 999999 | |
| 3.20 | -62.00 | 3.09 | -62.00 | 15.54 | 5.85 | -59.10 | 74.18 | 0.8613 | -489.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.38 | 17.58 | 4.81 | -60.14 | 71.94 | 0.8716 | 519.0 | 469.7 | |
| 1.73 | -63.00 | 1.69 | -63.00 | 16.08 | 5.53 | -59.42 | 73.59 | 0.8644 | -259.5 | 999999 | |
| 2.85 | -59.00 | 2.87 | -59.00 | 17.45 | 4.64 | -60.31 | 72.11 | 0.8729 | 554.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.35 | 15.49 | 5.45 | -59.50 | 74.28 | 0.8647 | -428.0 | -371.6 | |
| 0.00 | 0.52 | 0.00 | 0.53 | 18.09 | 4.01 | -60.94 | 71.44 | 0.8785 | 301.0 | 242.3 | |
| 0.43 | 1.47 | 0.45 | 1.52 | 17.86 | 3.69 | -61.26 | 71.74 | 0.8808 | 440.4 | 402.2 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 15.99 | 4.52 | -60.43 | 73.79 | 0.8727 | -225.0 | -238.0 | |
| 0.00 | 0.95 | 0.00 | 0.99 | 17.63 | 3.56 | -61.39 | 72.01 | 0.8816 | 493.0 | 431.3 | |
| 1.04 | 2.25 | 1.01 | 2.19 | 13.32 | 5.48 | -59.47 | 76.78 | 0.8630 | 462.9 | 350.4 | |
| 0.00 | 1.47 | 0.00 | 1.56 | 17.97 | 2.96 | -61.99 | 71.68 | 0.8865 | 73.0 | 72.7 | |
| 3.54 | -59.00 | 3.74 | -59.00 | 17.58 | 3.13 | -61.82 | 72.11 | 0.8849 | 329.0 | 999999 | |
| 4.92 | -59.00 | 5.17 | -59.00 | 17.34 | 3.27 | -61.68 | 72.37 | 0.8837 | 608.7 | 999999 | |
| 3.54 | -59.00 | 3.75 | -59.00 | 17.10 | 2.94 | -62.01 | 72.66 | 0.8861 | 512.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.00 | 16.12 | 3.09 | -61.86 | 73.76 | 0.8843 | 650.0 | 598.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
