SDO HMI 2014-11-06 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.93 | 0.00 | 9.58 | -21.17 | 77.18 | 12.77 | 206.11 | 0.4828 | 488.2 | 485.8 | |
|
previous
or next observation for the same group /

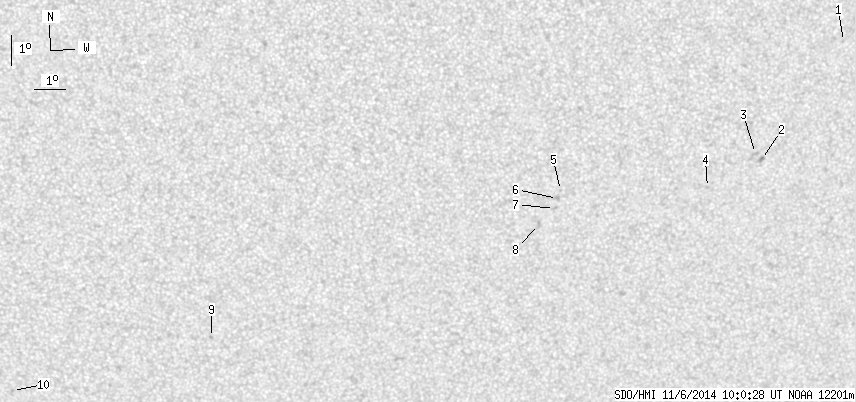

back to the solar disc SDO HMI 2014-11-06 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | -16.19 | 84.99 | 20.58 | 224.95 | 0.4798 | 784.0 | 650.5 | |
| 0.00 | 2.76 | 0.00 | 1.58 | -19.91 | 82.69 | 18.29 | 216.45 | 0.4985 | 830.0 | 673.4 | |
| 0.00 | 2.42 | 0.00 | 1.38 | -19.71 | 82.47 | 18.06 | 216.38 | 0.4942 | 807.0 | 667.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -20.78 | 81.00 | 16.59 | 212.83 | 0.4945 | 730.0 | 504.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -20.79 | 76.17 | 11.77 | 204.67 | 0.4589 | 796.0 | 643.4 | |
| 0.00 | 2.59 | 0.00 | 1.45 | -21.05 | 76.10 | 11.69 | 204.27 | 0.4620 | 902.0 | 649.8 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -21.38 | 76.03 | 11.62 | 203.84 | 0.4661 | 809.0 | 609.2 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -21.90 | 75.55 | 11.14 | 202.50 | 0.4705 | 707.0 | 604.0 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -25.60 | 65.01 | 0.61 | 181.12 | 0.4935 | -675.0 | -530.5 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -27.45 | 58.34 | -6.06 | 169.76 | 0.5293 | -808.0 | -720.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
