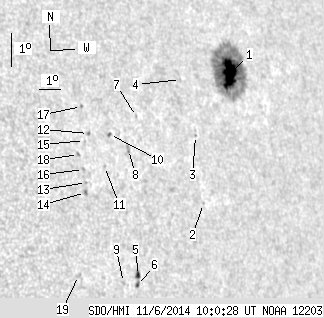

SDO HMI 2014-11-06 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.19 | 165.99 | 24.03 | 135.36 | 13.27 | 116.77 | 52.37 | 283.78 | 0.7954 | -403.4 | -177.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.51 | 138.27 | 22.07 | 115.15 | 13.78 | 117.70 | 53.30 | 284.33 | 0.8059 | -961.0 | -261.2 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 9.97 | 115.36 | 50.96 | 279.75 | 0.7785 | -508.0 | -469.2 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 12.02 | 115.47 | 51.07 | 282.36 | 0.7812 | -469.0 | -476.9 | |
| 0.00 | 0.60 | 0.00 | 0.48 | 13.73 | 115.23 | 50.83 | 284.58 | 0.7805 | 288.0 | 184.6 | |
| 1.90 | 3.63 | 1.39 | 2.66 | 7.99 | 111.98 | 47.58 | 277.33 | 0.7394 | -635.0 | -484.8 | |
| 0.78 | 2.68 | 0.57 | 1.96 | 7.69 | 111.89 | 47.49 | 276.94 | 0.7382 | -615.8 | -549.1 | |
| 0.00 | 1.12 | 0.00 | 0.84 | 12.72 | 112.87 | 48.46 | 283.60 | 0.7535 | 401.0 | 334.6 | |
| 0.00 | 3.11 | 0.00 | 2.30 | 11.76 | 112.26 | 47.86 | 282.39 | 0.7456 | 611.0 | 522.9 | |
| 0.00 | 1.38 | 0.00 | 1.00 | 7.81 | 111.29 | 46.88 | 277.13 | 0.7312 | -287.0 | -331.6 | |
| 0.00 | 1.55 | 0.00 | 1.14 | 12.25 | 111.52 | 47.11 | 283.15 | 0.7377 | 694.0 | 543.8 | |
| 0.00 | 1.04 | 0.00 | 0.75 | 11.30 | 111.08 | 46.68 | 281.92 | 0.7315 | 499.0 | 438.7 | |
| 0.00 | 1.64 | 0.00 | 1.18 | 12.32 | 110.60 | 46.20 | 283.39 | 0.7271 | 678.0 | 565.4 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 10.86 | 110.20 | 45.80 | 281.43 | 0.7206 | 771.0 | 626.5 | |
| 0.00 | 1.81 | 0.00 | 1.29 | 10.57 | 110.10 | 45.69 | 281.03 | 0.7191 | 745.0 | 649.5 | |
| 0.00 | 0.78 | 0.00 | 0.56 | 12.12 | 110.38 | 45.97 | 283.14 | 0.7243 | 546.0 | 504.7 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 11.26 | 110.15 | 45.74 | 281.98 | 0.7205 | 546.0 | 490.1 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 13.14 | 110.49 | 46.08 | 284.53 | 0.7270 | 500.0 | 448.5 | |
| 0.00 | 1.73 | 0.00 | 1.23 | 11.71 | 110.03 | 45.62 | 282.64 | 0.7196 | 648.0 | 522.1 | |
| 0.00 | 2.33 | 0.00 | 1.63 | 8.11 | 109.38 | 44.98 | 277.66 | 0.7084 | 632.0 | 558.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
