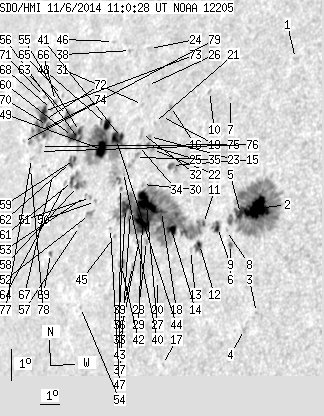

SDO HMI 2014-11-06 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.03 | 811.55 | 165.26 | 690.68 | 15.73 | 9.70 | -54.16 | 73.34 | 0.8147 | 105.1 | 107.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.58 | 19.87 | 15.73 | -48.13 | 67.00 | 0.7631 | -553.0 | -323.8 | |
| 29.36 | 192.05 | 22.10 | 144.57 | 15.23 | 15.59 | -48.27 | 73.06 | 0.7551 | -939.0 | -346.5 | |
| 0.00 | 1.12 | 0.00 | 0.83 | 12.12 | 16.38 | -47.48 | 77.08 | 0.7417 | -665.0 | -594.5 | |
| 0.00 | 2.42 | 0.00 | 1.79 | 11.58 | 15.96 | -47.90 | 77.85 | 0.7459 | -629.0 | -539.6 | |
| 4.23 | -2.00 | 3.23 | -2.00 | 15.05 | 14.85 | -49.01 | 73.44 | 0.7628 | -618.8 | 999999 | |
| 0.86 | 2.94 | 0.66 | 2.24 | 14.09 | 14.66 | -49.20 | 74.71 | 0.7634 | -620.8 | -501.2 | |
| 0.00 | 0.86 | 0.00 | 0.69 | 18.50 | 13.13 | -50.73 | 69.36 | 0.7868 | -456.0 | -386.6 | |
| 0.00 | 0.95 | 0.00 | 0.73 | 14.50 | 14.35 | -49.51 | 74.22 | 0.7674 | -577.0 | -477.2 | |
| 3.45 | 7.51 | 2.68 | 5.84 | 14.57 | 13.90 | -49.96 | 74.21 | 0.7723 | -541.0 | -320.1 | |
| 0.00 | 1.38 | 0.00 | 1.13 | 18.66 | 12.00 | -51.86 | 69.39 | 0.7983 | -315.0 | -244.5 | |
| 1.04 | 259.49 | 0.82 | 215.76 | 14.66 | 13.20 | -50.66 | 74.21 | 0.7799 | -379.0 | 219.7 | |
| 1.73 | 7.86 | 1.36 | 6.18 | 14.02 | 13.20 | -50.66 | 75.02 | 0.7790 | -378.7 | -398.2 | |
| 0.00 | 1.30 | 0.00 | 1.03 | 13.82 | 12.82 | -51.03 | 75.33 | 0.7827 | -376.0 | -259.8 | |
| 6.04 | -11.00 | 4.91 | -11.00 | 14.40 | 11.70 | -52.16 | 74.75 | 0.7951 | -381.2 | 999999 | |
| 1.99 | 7.51 | 1.65 | 6.21 | 16.33 | 11.01 | -52.85 | 72.46 | 0.8045 | 677.2 | 575.7 | |
| 0.00 | 1.55 | 0.00 | 1.32 | 18.10 | 10.22 | -53.64 | 70.40 | 0.8147 | 739.0 | 656.8 | |
| 0.00 | 0.43 | 0.00 | 0.34 | 10.35 | 12.38 | -51.48 | 79.80 | 0.7843 | -586.0 | -542.0 | |
| 1.99 | -11.00 | 1.64 | -11.00 | 14.92 | 11.01 | -52.84 | 74.20 | 0.8026 | 895.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.59 | 17.78 | 9.88 | -53.98 | 70.86 | 0.8174 | 624.0 | 556.1 | |
| 0.00 | 0.26 | 0.00 | 0.21 | 12.84 | 11.48 | -52.38 | 76.73 | 0.7957 | -561.0 | -578.0 | |
| 0.00 | 1.04 | 0.00 | 0.89 | 17.58 | 9.59 | -54.26 | 71.15 | 0.8199 | 587.0 | 500.3 | |
| 0.00 | 1.90 | 0.00 | 1.62 | 16.76 | 9.84 | -54.02 | 72.11 | 0.8165 | 735.0 | 665.3 | |
| 0.00 | 1.21 | 0.00 | 1.04 | 17.14 | 9.52 | -54.34 | 71.69 | 0.8200 | 723.0 | 640.1 | |
| 0.00 | 2.59 | 0.00 | 2.32 | 19.81 | 8.24 | -55.62 | 68.70 | 0.8355 | 441.0 | 308.0 | |
| 0.86 | 2.42 | 0.74 | 2.08 | 16.87 | 9.58 | -54.28 | 72.01 | 0.8191 | 739.4 | 646.3 | |
| 0.00 | 0.35 | 0.00 | 0.30 | 18.68 | 8.70 | -55.15 | 69.97 | 0.8297 | 453.0 | 459.5 | |
| 30.57 | -11.00 | 25.76 | -11.00 | 15.09 | 10.17 | -53.68 | 74.10 | 0.8111 | 977.4 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.73 | 13.98 | 10.56 | -53.29 | 75.42 | 0.8061 | -704.0 | -573.9 | |
| 26.51 | -11.00 | 22.31 | -11.00 | 14.57 | 10.15 | -53.70 | 74.74 | 0.8108 | 74.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 15.68 | 9.74 | -54.12 | 73.44 | 0.8161 | 312.0 | 222.8 | |
| 0.00 | 0.95 | 0.00 | 0.84 | 18.09 | 8.71 | -55.15 | 70.67 | 0.8288 | 344.0 | 372.5 | |
| 0.00 | 3.37 | 0.00 | 2.93 | 17.21 | 9.05 | -54.80 | 71.68 | 0.8245 | 535.0 | 474.9 | |
| 0.00 | 1.64 | 0.00 | 1.38 | 13.93 | 10.17 | -53.69 | 75.53 | 0.8100 | -573.0 | -487.7 | |
| 0.00 | 1.73 | 0.00 | 1.50 | 16.84 | 9.05 | -54.81 | 72.12 | 0.8240 | 706.0 | 624.0 | |
| 0.00 | 4.84 | 0.00 | 4.20 | 16.47 | 9.05 | -54.81 | 72.57 | 0.8236 | 691.0 | 618.8 | |
| 0.35 | 1.73 | 0.29 | 1.45 | 13.20 | 10.09 | -53.76 | 76.44 | 0.8100 | 418.0 | 467.4 | |
| 1.04 | -11.00 | 0.89 | -11.00 | 14.84 | 9.42 | -54.43 | 74.51 | 0.8182 | -413.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.27 | 19.69 | 7.22 | -56.64 | 69.01 | 0.8444 | 515.0 | 453.4 | |
| 8.03 | -11.00 | 6.93 | -11.00 | 14.91 | 9.13 | -54.73 | 74.45 | 0.8211 | -466.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.74 | 15.99 | 8.60 | -55.26 | 73.22 | 0.8273 | 361.0 | 331.4 | |
| 2.94 | 177.19 | 2.62 | 162.99 | 17.03 | 8.03 | -55.82 | 72.04 | 0.8337 | 632.0 | 338.1 | |
| 0.52 | 4.66 | 0.44 | 3.97 | 13.17 | 9.53 | -54.33 | 76.53 | 0.8156 | -633.2 | -509.0 | |
| 0.00 | 1.38 | 0.00 | 1.21 | 15.50 | 8.63 | -55.23 | 73.80 | 0.8265 | -258.0 | -167.4 | |
| 9.67 | -41.00 | 8.68 | -41.00 | 16.96 | 7.79 | -56.07 | 72.16 | 0.8359 | 697.5 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.82 | 14.04 | 8.86 | -55.00 | 75.53 | 0.8229 | -310.0 | -278.6 | |
| 0.00 | 1.21 | 0.00 | 1.14 | 19.91 | 6.10 | -57.76 | 68.93 | 0.8543 | 455.0 | 375.9 | |
| 0.00 | 0.69 | 0.00 | 0.60 | 14.27 | 8.56 | -55.30 | 75.29 | 0.8260 | -147.0 | -108.5 | |
| 5.44 | -41.00 | 4.98 | -41.00 | 17.38 | 7.02 | -56.83 | 71.76 | 0.8433 | 595.1 | 999999 | |
| 11.74 | -41.00 | 10.71 | -41.00 | 16.61 | 7.10 | -56.76 | 72.66 | 0.8418 | -398.3 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.17 | 15.04 | 7.44 | -56.42 | 74.49 | 0.8372 | -389.0 | -303.9 | |
| 0.00 | 1.12 | 0.00 | 1.02 | 15.14 | 7.11 | -56.75 | 74.40 | 0.8402 | -507.0 | -365.8 | |
| 0.00 | 5.53 | 0.00 | 4.99 | 14.63 | 7.26 | -56.59 | 75.00 | 0.8384 | 639.0 | 529.6 | |
| 0.00 | 1.55 | 0.00 | 1.42 | 15.16 | 6.82 | -57.04 | 74.42 | 0.8429 | -84.0 | -71.4 | |
| 0.00 | 0.86 | 0.00 | 0.77 | 11.83 | 7.75 | -56.11 | 78.31 | 0.8318 | -406.0 | -372.2 | |
| 2.25 | -41.00 | 2.13 | -41.00 | 17.09 | 5.59 | -58.27 | 72.29 | 0.8555 | 652.5 | 999999 | |
| 1.55 | -41.00 | 1.47 | -41.00 | 16.85 | 5.71 | -58.15 | 72.55 | 0.8543 | 515.1 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.02 | 14.24 | 6.85 | -57.01 | 75.50 | 0.8418 | 348.0 | 352.1 | |
| 1.90 | 19.08 | 1.77 | 17.78 | 15.43 | 6.24 | -57.61 | 74.15 | 0.8483 | 560.3 | 96.4 | |
| 1.38 | 8.03 | 1.31 | 7.60 | 16.23 | 5.71 | -58.15 | 73.27 | 0.8537 | -481.4 | -318.0 | |
| 6.56 | -41.00 | 6.29 | -41.00 | 16.91 | 5.26 | -58.60 | 72.53 | 0.8582 | 26.7 | 999999 | |
| 2.68 | -58.00 | 2.51 | -58.00 | 15.56 | 5.89 | -57.96 | 74.03 | 0.8515 | -457.0 | 999999 | |
| 2.94 | -59.00 | 2.79 | -59.00 | 16.13 | 5.52 | -58.34 | 73.41 | 0.8553 | -357.6 | 999999 | |
| 3.11 | -41.00 | 3.04 | -41.00 | 17.53 | 4.64 | -59.22 | 71.89 | 0.8640 | 546.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.56 | 15.48 | 5.52 | -58.34 | 74.17 | 0.8547 | -369.0 | -334.4 | |
| 0.00 | 1.04 | 0.00 | 1.03 | 18.11 | 4.00 | -59.85 | 71.29 | 0.8698 | 243.0 | 197.2 | |
| 0.69 | 1.99 | 0.69 | 2.00 | 17.91 | 3.68 | -60.18 | 71.56 | 0.8722 | 438.9 | 355.9 | |
| 0.00 | 0.60 | 0.00 | 0.59 | 15.68 | 4.65 | -59.21 | 74.02 | 0.8624 | -292.0 | -266.0 | |
| 0.00 | 0.86 | 0.00 | 0.87 | 17.66 | 3.57 | -60.29 | 71.86 | 0.8729 | 441.0 | 408.6 | |
| 0.95 | 1.99 | 0.90 | 1.87 | 13.35 | 5.53 | -58.33 | 76.67 | 0.8531 | 375.5 | 317.3 | |
| 1.73 | 50.69 | 1.74 | 51.49 | 17.16 | 3.59 | -60.27 | 72.42 | 0.8724 | 785.8 | 395.7 | |
| 0.00 | 1.04 | 0.00 | 1.07 | 18.02 | 2.91 | -60.95 | 71.52 | 0.8785 | 246.0 | 178.7 | |
| 5.87 | -70.00 | 5.97 | -70.00 | 17.30 | 3.26 | -60.60 | 72.30 | 0.8751 | 639.1 | 999999 | |
| 4.32 | -70.00 | 4.41 | -70.00 | 17.57 | 3.11 | -60.75 | 72.01 | 0.8766 | 364.6 | 999999 | |
| 6.74 | -70.00 | 6.84 | -70.00 | 16.99 | 3.24 | -60.62 | 72.66 | 0.8751 | 561.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.74 | 16.51 | 3.49 | -60.37 | 73.18 | 0.8726 | 398.0 | 331.4 | |
| 0.00 | 0.95 | 0.00 | 0.95 | 16.35 | 3.51 | -60.35 | 73.35 | 0.8724 | 344.0 | 271.2 | |
| 0.00 | 1.38 | 0.00 | 1.40 | 16.12 | 3.12 | -60.73 | 73.66 | 0.8753 | 655.0 | 598.2 | |
| 0.00 | 1.21 | 0.00 | 1.23 | 15.82 | 3.21 | -60.64 | 74.00 | 0.8744 | 518.0 | 429.2 | |
| 0.00 | 1.12 | 0.00 | 1.17 | 16.60 | 2.35 | -61.51 | 73.18 | 0.8818 | 440.0 | 367.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
