SDO HMI 2014-11-06 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.19 | 12.45 | 2.54 | 9.73 | -15.62 | 16.56 | -47.30 | 113.82 | 0.7755 | -143.7 | -355.8 | |
|
previous
or next observation for the same group /

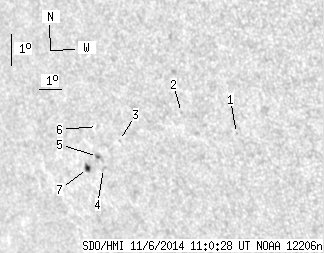

back to the solar disc SDO HMI 2014-11-06 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.48 | -14.66 | 22.43 | -41.42 | 115.18 | 0.7096 | 582.0 | 455.6 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -14.11 | 20.27 | -43.59 | 113.45 | 0.7312 | 502.0 | 413.9 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -15.12 | 17.29 | -46.57 | 113.48 | 0.7667 | 498.0 | 403.2 | |
| 0.00 | 1.99 | 0.00 | 1.57 | -16.05 | 16.28 | -47.58 | 114.22 | 0.7802 | -681.0 | -643.6 | |
| 0.69 | 3.28 | 0.54 | 2.59 | -15.68 | 16.12 | -47.74 | 113.71 | 0.7805 | -575.6 | -543.4 | |
| 0.00 | 1.30 | 0.00 | 1.01 | -14.73 | 16.41 | -47.45 | 112.65 | 0.7743 | -472.0 | -371.9 | |
| 2.50 | 4.06 | 2.00 | 3.25 | -16.09 | 15.52 | -48.33 | 113.97 | 0.7878 | -601.0 | -497.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
