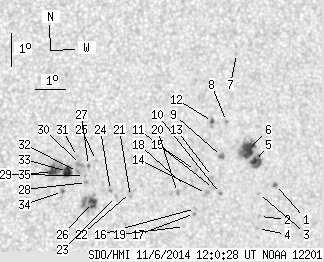

SDO HMI 2014-11-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.30 | 127.69 | 19.52 | 70.46 | -4.97 | 87.84 | 24.53 | 250.24 | 0.4408 | 132.2 | -1.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 1.55 | 0.35 | 0.89 | -5.46 | 91.73 | 28.42 | 252.08 | 0.4999 | 768.4 | 699.5 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -6.40 | 91.24 | 27.93 | 249.96 | 0.4974 | 673.0 | 578.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -5.71 | 91.16 | 27.85 | 251.25 | 0.4930 | 629.0 | 570.7 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -6.76 | 91.19 | 27.88 | 249.24 | 0.4986 | 766.0 | 512.2 | |
| 3.02 | 34.45 | 1.71 | 19.46 | -4.74 | 90.98 | 27.67 | 253.03 | 0.4859 | 948.7 | 689.1 | |
| 13.64 | -5.00 | 7.70 | -5.00 | -4.37 | 90.73 | 27.42 | 253.62 | 0.4806 | 979.0 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -1.48 | 90.29 | 26.98 | 259.36 | 0.4634 | 773.0 | 558.6 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -3.51 | 90.00 | 26.69 | 254.96 | 0.4662 | 819.0 | 706.0 | |
| 0.69 | 3.37 | 0.39 | 1.89 | -4.55 | 89.87 | 26.56 | 252.72 | 0.4687 | 934.8 | 802.1 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -5.67 | 89.88 | 26.57 | 250.48 | 0.4743 | 664.0 | 549.2 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -5.51 | 89.64 | 26.33 | 250.63 | 0.4700 | 718.0 | 646.0 | |
| 0.86 | 3.45 | 0.48 | 1.92 | -3.49 | 89.53 | 26.22 | 254.73 | 0.4591 | 988.0 | 797.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -5.15 | 89.59 | 26.28 | 251.34 | 0.4675 | 749.0 | 640.9 | |
| 0.00 | 2.85 | 0.00 | 1.59 | -5.65 | 89.42 | 26.11 | 250.18 | 0.4674 | 910.0 | 684.3 | |
| 0.00 | 2.07 | 0.00 | 1.15 | -4.95 | 89.02 | 25.71 | 251.35 | 0.4581 | 755.0 | 617.8 | |
| 0.00 | 1.99 | 0.00 | 1.11 | -6.09 | 89.07 | 25.76 | 249.04 | 0.4647 | 790.0 | 615.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -6.24 | 89.05 | 25.74 | 248.72 | 0.4652 | 854.0 | 703.5 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -5.42 | 88.71 | 25.40 | 250.15 | 0.4559 | 641.0 | 495.8 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -6.63 | 88.74 | 25.43 | 247.70 | 0.4629 | 677.0 | 462.6 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -5.59 | 88.45 | 25.14 | 249.60 | 0.4530 | 1025.0 | 886.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -5.67 | 86.91 | 23.60 | 248.21 | 0.4309 | -766.0 | -659.6 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -5.55 | 86.91 | 23.60 | 248.47 | 0.4302 | -709.0 | -520.1 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -5.65 | 86.46 | 23.15 | 247.85 | 0.4242 | -564.0 | -335.9 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -5.47 | 86.26 | 22.95 | 248.08 | 0.4201 | -828.0 | -695.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -4.55 | 85.77 | 22.46 | 249.74 | 0.4077 | -763.0 | -576.9 | |
| 4.75 | 19.25 | 2.58 | 10.46 | -5.81 | 85.69 | 22.38 | 246.79 | 0.4138 | -975.6 | -709.5 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -4.70 | 85.52 | 22.21 | 249.19 | 0.4047 | -702.0 | -572.9 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -5.21 | 85.47 | 22.16 | 247.97 | 0.4070 | -826.0 | -600.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -4.99 | 85.40 | 22.09 | 248.39 | 0.4046 | -587.0 | -572.3 | |
| 0.00 | 3.45 | 0.00 | 1.87 | -4.66 | 85.26 | 21.95 | 249.05 | 0.4006 | -790.0 | -713.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -4.42 | 85.15 | 21.84 | 249.53 | 0.3977 | 176.0 | 178.4 | |
| 0.00 | 2.33 | 0.00 | 1.26 | -4.87 | 85.17 | 21.86 | 248.48 | 0.4005 | -941.0 | -777.8 | |
| 6.39 | 25.38 | 3.44 | 13.65 | -4.86 | 84.85 | 21.54 | 248.20 | 0.3956 | -1089.9 | -753.5 | |
| 0.43 | 1.38 | 0.23 | 0.75 | -5.46 | 84.71 | 21.40 | 246.67 | 0.3972 | -898.2 | -825.9 | |
| 4.92 | -33.00 | 2.64 | -33.00 | -4.85 | 84.37 | 21.06 | 247.78 | 0.3884 | -1206.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
