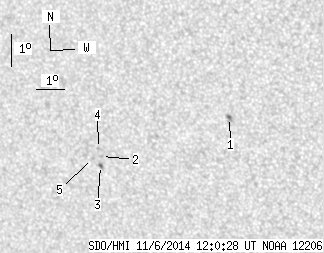

SDO HMI 2014-11-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.30 | 9.16 | 0.78 | 5.50 | -13.98 | 33.72 | -29.59 | 121.89 | 0.5657 | -322.0 | -5.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.52 | 4.06 | 0.30 | 2.36 | -13.15 | 36.46 | -26.85 | 122.93 | 0.5262 | 940.8 | 688.8 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -14.52 | 31.77 | -31.54 | 121.07 | 0.5934 | -720.0 | -551.9 | |
| 0.78 | 2.16 | 0.48 | 1.33 | -14.80 | 31.69 | -31.62 | 121.43 | 0.5963 | -748.9 | -581.2 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -14.27 | 31.70 | -31.61 | 120.64 | 0.5926 | -699.0 | -547.1 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -14.59 | 31.43 | -31.88 | 120.92 | 0.5980 | -557.0 | -475.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
