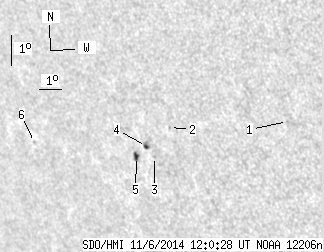

SDO HMI 2014-11-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.40 | 11.31 | 3.47 | 8.89 | -15.76 | 15.89 | -47.42 | 113.96 | 0.7769 | -355.0 | -294.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.66 | -14.64 | 22.47 | -40.84 | 115.43 | 0.7030 | 334.0 | 354.8 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -15.06 | 17.34 | -45.97 | 113.65 | 0.7602 | 392.0 | 342.1 | |
| 0.00 | 0.95 | 0.00 | 0.74 | -16.02 | 16.39 | -46.92 | 114.44 | 0.7735 | -792.0 | -695.8 | |
| 1.64 | 3.11 | 1.28 | 2.43 | -15.72 | 16.12 | -47.19 | 113.96 | 0.7752 | -586.7 | -507.6 | |
| 2.76 | 4.23 | 2.19 | 3.35 | -16.06 | 15.55 | -47.76 | 114.16 | 0.7820 | -625.2 | -521.8 | |
| 0.00 | 1.12 | 0.00 | 0.99 | -15.88 | 10.66 | -52.65 | 112.19 | 0.8280 | -466.0 | -376.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
