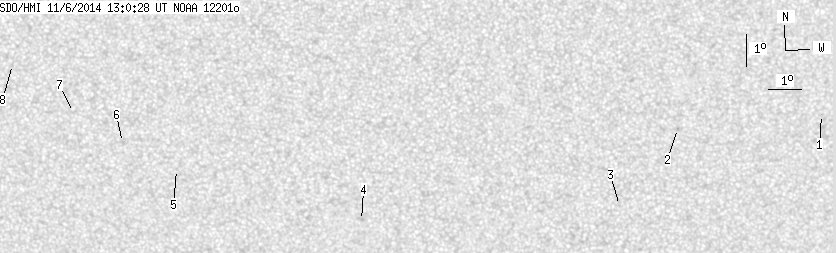

SDO HMI 2014-11-06 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.72 | 0.00 | 4.60 | -13.54 | 56.10 | -6.66 | 160.50 | 0.3456 | 186.6 | 139.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.13 | 74.15 | 11.39 | 213.54 | 0.3497 | -27.0 | 3.7 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.51 | 69.71 | 6.95 | 201.59 | 0.3212 | 825.0 | 614.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -15.91 | 67.99 | 5.22 | 194.56 | 0.3499 | 10.0 | 9.3 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -16.36 | 60.00 | -2.76 | 172.37 | 0.3494 | 702.0 | 627.6 | |
| 0.00 | 0.78 | 0.00 | 0.41 | -14.78 | 54.31 | -8.45 | 155.94 | 0.3501 | -10.0 | -2.7 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -13.95 | 52.67 | -10.09 | 150.79 | 0.3501 | -12.0 | -7.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -13.04 | 51.19 | -11.57 | 145.89 | 0.3501 | 1.0 | 3.1 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -11.58 | 49.36 | -13.40 | 139.27 | 0.3495 | 4.0 | 2.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
