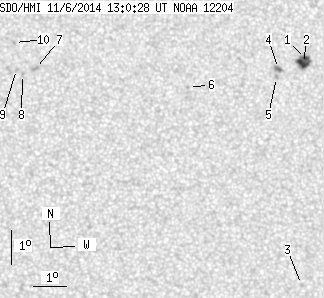

SDO HMI 2014-11-06 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.58 | 29.45 | 4.86 | 14.84 | 5.23 | 72.92 | 10.15 | 280.92 | 0.1802 | -318.1 | -194.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.50 | 13.64 | 1.27 | 6.92 | 5.73 | 75.30 | 12.54 | 279.18 | 0.2199 | -943.8 | -788.8 | |
| 7.08 | -1.00 | 3.59 | -1.00 | 5.58 | 75.24 | 12.48 | 278.55 | 0.2184 | -1123.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -0.99 | 75.11 | 12.35 | 248.96 | 0.2302 | 515.0 | 386.4 | |
| 0.00 | 4.23 | 0.00 | 2.14 | 5.44 | 74.47 | 11.71 | 278.37 | 0.2052 | -1256.0 | -958.5 | |
| 0.00 | 1.99 | 0.00 | 1.00 | 5.18 | 74.41 | 11.64 | 277.11 | 0.2035 | -909.0 | -800.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 4.91 | 71.73 | 8.97 | 277.31 | 0.1574 | -862.0 | -691.8 | |
| 0.00 | 2.68 | 0.00 | 1.33 | 5.52 | 67.14 | 4.38 | 291.45 | 0.0821 | 971.0 | 760.4 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 5.34 | 66.75 | 3.99 | 291.12 | 0.0747 | 809.0 | 665.9 | |
| 0.00 | 1.64 | 0.00 | 0.81 | 5.49 | 66.58 | 3.81 | 293.93 | 0.0728 | 970.0 | 638.6 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 6.30 | 66.52 | 3.76 | 303.64 | 0.0787 | 902.0 | 788.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
