SDO HMI 2014-11-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.50 | 127.50 | 21.53 | 70.79 | -4.94 | 87.51 | 25.29 | 250.81 | 0.4520 | 83.8 | -113.3 | |
|
previous
or next observation for the same group /

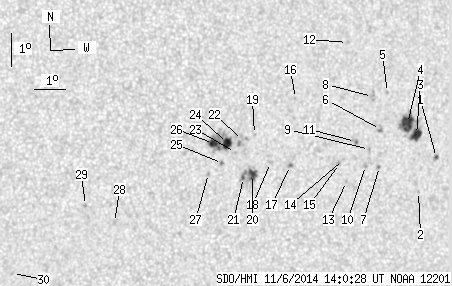

back to the solar disc SDO HMI 2014-11-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.78 | 1.64 | 0.45 | 0.95 | -5.47 | 91.86 | 29.64 | 252.77 | 0.5176 | 704.6 | 604.8 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -6.47 | 91.30 | 29.08 | 250.58 | 0.5142 | 636.0 | 565.8 | |
| 7.51 | 36.08 | 4.30 | 20.61 | -4.75 | 91.14 | 28.92 | 253.72 | 0.5042 | 837.0 | 517.9 | |
| 13.12 | -3.00 | 7.48 | -3.00 | -4.41 | 90.82 | 28.60 | 254.21 | 0.4981 | 990.7 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -3.46 | 90.10 | 27.89 | 255.71 | 0.4838 | 814.0 | 677.1 | |
| 0.00 | 2.85 | 0.00 | 1.61 | -4.56 | 89.91 | 27.70 | 253.40 | 0.4854 | 801.0 | 768.5 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -5.67 | 89.93 | 27.71 | 251.23 | 0.4908 | 649.0 | 582.1 | |
| 0.00 | 4.06 | 0.00 | 2.28 | -3.56 | 89.60 | 27.39 | 255.24 | 0.4768 | 1044.0 | 723.8 | |
| 0.00 | 1.90 | 0.00 | 1.07 | -5.15 | 89.56 | 27.35 | 252.02 | 0.4830 | 790.0 | 652.7 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -5.63 | 89.45 | 27.24 | 251.01 | 0.4837 | 795.0 | 648.5 | |
| 0.00 | 2.76 | 0.00 | 1.55 | -4.90 | 89.08 | 26.87 | 252.23 | 0.4748 | 737.0 | 714.8 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -1.92 | 88.73 | 26.52 | 258.23 | 0.4577 | 695.0 | 565.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -6.09 | 88.84 | 26.62 | 249.68 | 0.4772 | 709.0 | 575.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -5.42 | 88.70 | 26.49 | 250.92 | 0.4718 | 737.0 | 571.5 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -5.54 | 88.58 | 26.36 | 250.59 | 0.4706 | 967.0 | 858.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -3.54 | 87.05 | 24.83 | 253.78 | 0.4384 | 791.0 | 547.5 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -5.55 | 86.95 | 24.74 | 249.38 | 0.4469 | -815.0 | -672.9 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -5.44 | 86.29 | 24.08 | 249.10 | 0.4366 | -807.0 | -580.6 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -4.59 | 85.74 | 23.53 | 250.54 | 0.4238 | -415.0 | -404.1 | |
| 4.75 | 17.52 | 2.60 | 9.60 | -5.79 | 85.72 | 23.51 | 247.88 | 0.4302 | -944.2 | -685.8 | |
| 0.60 | -20.00 | 0.33 | -20.00 | -5.87 | 85.43 | 23.22 | 247.44 | 0.4265 | -856.7 | 999999 | |
| 0.00 | 7.16 | 0.00 | 3.90 | -4.75 | 85.35 | 23.14 | 249.85 | 0.4190 | -683.0 | -672.3 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -5.11 | 85.14 | 22.93 | 248.88 | 0.4178 | -765.0 | -600.6 | |
| 6.91 | 31.68 | 3.75 | 17.18 | -4.83 | 84.87 | 22.66 | 249.28 | 0.4122 | -1051.6 | -667.1 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -5.43 | 84.73 | 22.52 | 247.80 | 0.4136 | -907.0 | -797.2 | |
| 4.83 | -24.00 | 2.62 | -24.00 | -4.82 | 84.42 | 22.21 | 248.91 | 0.4054 | -1198.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -5.72 | 84.29 | 22.08 | 246.74 | 0.4088 | -804.0 | -679.2 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -7.12 | 81.34 | 19.13 | 240.22 | 0.3763 | -697.0 | -543.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -6.59 | 80.41 | 18.19 | 240.25 | 0.3588 | -839.0 | -753.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -8.60 | 78.20 | 15.98 | 232.03 | 0.3469 | -888.0 | -695.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
