SDO HMI 2014-11-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.87 | 0.00 | 6.81 | -14.30 | 56.24 | -5.98 | 161.67 | 0.3527 | 198.9 | 120.4 | |
|
previous
or next observation for the same group /

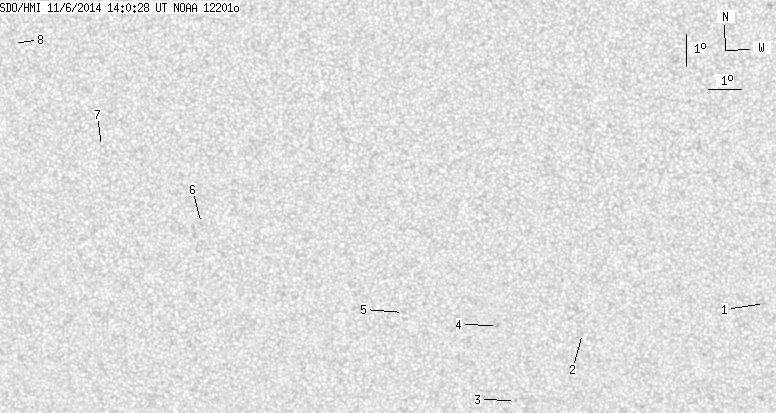

back to the solar disc SDO HMI 2014-11-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.66 | 68.27 | 6.05 | 196.96 | 0.3498 | 4.0 | 2.5 | |
| 0.00 | 1.99 | 0.00 | 1.05 | -16.58 | 62.64 | 0.43 | 181.18 | 0.3501 | -21.0 | -2.5 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -18.72 | 60.54 | -1.67 | 175.88 | 0.3859 | 778.0 | 629.1 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -16.33 | 60.01 | -2.20 | 173.89 | 0.3478 | 889.0 | 676.0 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -15.92 | 57.11 | -5.11 | 165.77 | 0.3497 | 15.0 | -0.8 | |
| 0.00 | 2.16 | 0.00 | 1.14 | -13.19 | 50.94 | -11.27 | 146.84 | 0.3494 | -8.0 | -8.0 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -10.86 | 47.94 | -14.27 | 136.07 | 0.3504 | -57.0 | -16.3 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -7.76 | 45.34 | -16.88 | 124.52 | 0.3506 | -9.0 | 0.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
