SDO HMI 2014-11-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.67 | 16.75 | 1.56 | 9.92 | -13.97 | 33.95 | -28.27 | 123.02 | 0.5493 | -408.8 | -204.5 | |
|
previous
or next observation for the same group /

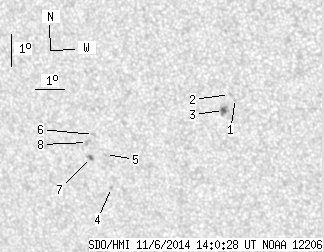

back to the solar disc SDO HMI 2014-11-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.20 | -12.79 | 37.03 | -25.18 | 123.98 | 0.5024 | -186.0 | -206.8 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -12.67 | 36.84 | -25.37 | 123.59 | 0.5038 | -634.0 | -430.5 | |
| 1.81 | 5.96 | 1.04 | 3.43 | -13.18 | 36.58 | -25.63 | 124.17 | 0.5111 | 923.0 | 683.6 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -15.72 | 32.35 | -29.87 | 124.20 | 0.5818 | -696.0 | -580.8 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -14.68 | 32.30 | -29.92 | 122.61 | 0.5750 | -656.0 | -581.3 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -14.07 | 31.96 | -30.25 | 121.40 | 0.5747 | -723.0 | -484.6 | |
| 0.86 | 2.93 | 0.52 | 1.78 | -14.79 | 31.74 | -30.47 | 122.33 | 0.5824 | -788.7 | -593.2 | |
| 0.00 | 2.50 | 0.00 | 1.52 | -14.33 | 31.71 | -30.50 | 121.59 | 0.5796 | -745.0 | -663.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
