SDO HMI 2014-11-06 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.27 | 140.71 | 24.78 | 78.36 | -5.01 | 87.27 | 25.61 | 250.84 | 0.4570 | -22.3 | -83.0 | |
|
previous
or next observation for the same group /

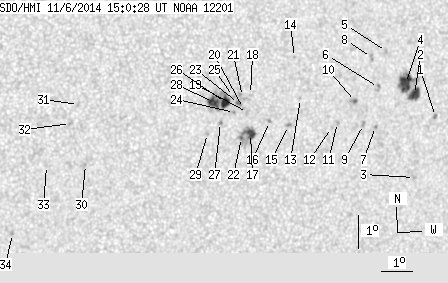

back to the solar disc SDO HMI 2014-11-06 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.25 | -5.46 | 91.92 | 30.26 | 253.12 | 0.5263 | 837.0 | 643.1 | |
| 7.60 | 38.67 | 4.38 | 22.22 | -4.78 | 91.17 | 29.50 | 254.00 | 0.5126 | 817.9 | 502.1 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -7.28 | 91.31 | 29.65 | 249.46 | 0.5261 | 689.0 | 467.7 | |
| 13.98 | -2.00 | 8.02 | -2.00 | -4.43 | 90.84 | 29.18 | 254.47 | 0.5066 | 976.0 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -3.45 | 90.16 | 28.50 | 256.03 | 0.4928 | 808.0 | 562.3 | |
| 0.00 | 2.85 | 0.00 | 1.62 | -4.52 | 89.93 | 28.26 | 253.80 | 0.4936 | 806.0 | 708.1 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -5.69 | 89.88 | 28.22 | 251.51 | 0.4981 | 610.0 | 510.5 | |
| 0.00 | 2.76 | 0.00 | 1.56 | -3.61 | 89.66 | 27.99 | 255.45 | 0.4860 | 974.0 | 739.8 | |
| 0.00 | 2.24 | 0.00 | 1.27 | -5.62 | 89.47 | 27.81 | 251.40 | 0.4919 | 778.0 | 672.7 | |
| 0.69 | 3.28 | 0.39 | 1.85 | -4.92 | 89.17 | 27.50 | 252.58 | 0.4842 | 966.5 | 751.4 | |
| 0.00 | 1.73 | 0.00 | 0.97 | -5.53 | 88.59 | 26.93 | 251.00 | 0.4787 | 900.0 | 788.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -5.68 | 88.40 | 26.73 | 250.58 | 0.4766 | 777.0 | 584.6 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -4.77 | 87.33 | 25.66 | 251.70 | 0.4565 | 693.0 | 441.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -3.53 | 87.09 | 25.42 | 254.17 | 0.4472 | 759.0 | 593.8 | |
| 0.00 | 1.99 | 0.00 | 1.10 | -5.57 | 86.96 | 25.30 | 249.77 | 0.4552 | -775.0 | -589.0 | |
| 0.00 | 1.47 | 0.00 | 0.81 | -5.43 | 86.33 | 24.67 | 249.58 | 0.4452 | -718.0 | -596.5 | |
| 5.26 | 21.23 | 2.90 | 11.68 | -5.78 | 85.72 | 24.06 | 248.37 | 0.4382 | -956.0 | -557.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -4.60 | 85.68 | 24.01 | 250.88 | 0.4311 | -652.0 | -458.1 | |
| 0.00 | 2.24 | 0.00 | 1.23 | -5.14 | 85.60 | 23.93 | 249.64 | 0.4328 | -670.0 | -541.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -5.02 | 85.46 | 23.80 | 249.80 | 0.4302 | -728.0 | -573.5 | |
| 0.00 | 3.54 | 0.00 | 1.94 | -4.65 | 85.42 | 23.75 | 250.56 | 0.4276 | -373.0 | -635.9 | |
| 0.69 | -17.00 | 0.38 | -17.00 | -5.89 | 85.43 | 23.77 | 247.88 | 0.4346 | -941.0 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.46 | -4.86 | 85.29 | 23.63 | 250.01 | 0.4268 | -915.0 | -784.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -5.13 | 85.17 | 23.51 | 249.32 | 0.4265 | -806.0 | -702.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -4.65 | 85.12 | 23.46 | 250.35 | 0.4231 | -680.0 | -607.0 | |
| 6.73 | 31.59 | 3.67 | 17.20 | -4.82 | 84.87 | 23.21 | 249.76 | 0.4203 | -1043.1 | -564.1 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -5.42 | 84.73 | 23.07 | 248.31 | 0.4216 | -905.0 | -782.6 | |
| 7.42 | -26.00 | 4.04 | -26.00 | -4.81 | 84.48 | 22.82 | 249.46 | 0.4144 | -1181.7 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -5.74 | 84.32 | 22.66 | 247.24 | 0.4174 | -883.0 | -686.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -6.57 | 80.45 | 18.79 | 241.08 | 0.3672 | -779.0 | -572.7 | |
| 1.90 | 1.99 | 1.00 | 1.05 | -4.76 | 80.17 | 18.51 | 245.28 | 0.3499 | 2.3 | -3.0 | |
| 0.00 | 2.76 | 0.00 | 1.46 | -5.33 | 79.94 | 18.28 | 243.52 | 0.3504 | -5.0 | 2.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -6.58 | 79.23 | 17.56 | 239.40 | 0.3498 | -18.0 | -29.7 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -8.62 | 78.24 | 16.58 | 233.01 | 0.3547 | -983.0 | -725.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
