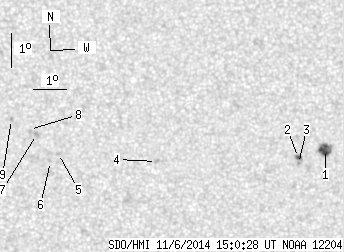

SDO HMI 2014-11-06 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.67 | 24.85 | 4.92 | 12.57 | 5.68 | 72.38 | 10.72 | 282.78 | 0.1898 | -258.6 | -94.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.46 | 12.26 | 4.31 | 6.25 | 5.64 | 75.30 | 13.64 | 278.19 | 0.2382 | -1100.9 | -783.6 | |
| 1.21 | 2.68 | 0.61 | 1.36 | 5.42 | 74.47 | 12.81 | 277.65 | 0.2237 | -1064.1 | -881.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 5.24 | 74.46 | 12.80 | 276.86 | 0.2233 | -974.0 | -799.6 | |
| 0.00 | 2.07 | 0.00 | 1.04 | 5.36 | 70.16 | 8.49 | 280.66 | 0.1503 | -867.0 | -678.1 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 5.62 | 67.21 | 5.55 | 288.32 | 0.1019 | 998.0 | 728.3 | |
| 0.00 | 0.86 | 0.00 | 0.43 | 5.39 | 66.97 | 5.31 | 286.76 | 0.0966 | 780.0 | 635.8 | |
| 0.00 | 2.24 | 0.00 | 1.12 | 6.19 | 66.56 | 4.90 | 296.19 | 0.0950 | 961.0 | 837.8 | |
| 0.00 | 0.60 | 0.00 | 0.30 | 6.34 | 66.35 | 4.69 | 298.62 | 0.0930 | 506.0 | 567.3 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 6.64 | 65.81 | 4.15 | 304.56 | 0.0877 | 908.0 | 739.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
