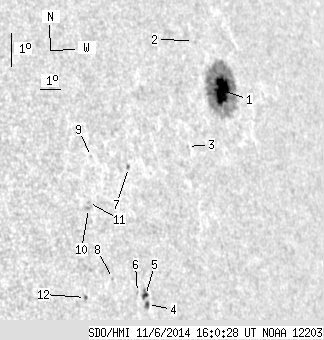

SDO HMI 2014-11-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.40 | 143.01 | 25.28 | 127.32 | 13.41 | 117.20 | 56.08 | 283.57 | 0.8323 | -535.8 | -227.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.03 | 126.34 | 22.65 | 114.27 | 13.89 | 117.81 | 56.69 | 284.12 | 0.8387 | -858.9 | -250.6 | |
| 0.00 | 0.35 | 0.00 | 0.31 | 15.47 | 116.87 | 55.76 | 286.10 | 0.8315 | -32.0 | -65.2 | |
| 0.00 | 0.69 | 0.00 | 0.59 | 12.32 | 115.42 | 54.31 | 282.44 | 0.8148 | -457.0 | -429.6 | |
| 1.21 | 3.54 | 0.95 | 2.79 | 7.73 | 112.33 | 51.22 | 276.86 | 0.7803 | -542.5 | -404.4 | |
| 1.73 | 4.40 | 1.36 | 3.47 | 8.00 | 112.28 | 51.17 | 277.21 | 0.7799 | -692.0 | -519.5 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 8.11 | 111.92 | 50.81 | 277.36 | 0.7759 | -663.0 | -643.8 | |
| 0.00 | 1.64 | 0.00 | 1.30 | 11.85 | 112.31 | 51.20 | 282.14 | 0.7824 | 613.0 | 512.3 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 8.59 | 110.82 | 49.71 | 278.03 | 0.7640 | 346.0 | 266.3 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 12.27 | 110.64 | 49.53 | 282.87 | 0.7649 | 622.0 | 503.7 | |
| 0.00 | 1.47 | 0.00 | 1.11 | 10.72 | 110.14 | 49.02 | 280.90 | 0.7577 | 735.0 | 562.9 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 10.90 | 110.17 | 49.06 | 281.13 | 0.7583 | 545.0 | 478.0 | |
| 0.43 | 1.47 | 0.32 | 1.09 | 8.08 | 109.49 | 48.38 | 277.44 | 0.7488 | 632.0 | 565.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
