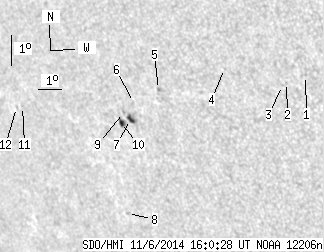

SDO HMI 2014-11-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.22 | 19.59 | 4.69 | 14.64 | -15.76 | 16.28 | -44.83 | 115.05 | 0.7502 | -198.3 | -212.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.74 | -14.21 | 23.59 | -37.53 | 116.64 | 0.6629 | 731.0 | 478.1 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -14.47 | 22.79 | -38.32 | 116.54 | 0.6734 | 450.0 | 457.0 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -14.57 | 22.62 | -38.50 | 116.57 | 0.6759 | 485.0 | 442.0 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -14.13 | 20.39 | -40.72 | 114.82 | 0.6993 | 487.0 | 434.1 | |
| 0.00 | 1.73 | 0.00 | 1.26 | -14.92 | 17.46 | -43.65 | 114.46 | 0.7351 | 722.0 | 562.8 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -15.38 | 16.26 | -44.85 | 114.52 | 0.7497 | -51.0 | -50.0 | |
| 3.37 | 6.82 | 2.53 | 5.12 | -15.93 | 15.97 | -45.14 | 115.08 | 0.7549 | -851.2 | -738.6 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -18.97 | 14.85 | -46.26 | 118.30 | 0.7783 | -572.0 | -464.4 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -15.72 | 15.72 | -45.39 | 114.71 | 0.7566 | -678.0 | -620.0 | |
| 2.85 | 4.57 | 2.16 | 3.47 | -16.05 | 15.54 | -45.57 | 115.04 | 0.7598 | -612.7 | -436.3 | |
| 0.00 | 0.60 | 0.00 | 0.50 | -15.77 | 11.05 | -50.06 | 112.94 | 0.8035 | -486.0 | -465.7 | |
| 0.00 | 1.04 | 0.00 | 0.86 | -15.82 | 10.74 | -50.37 | 112.89 | 0.8065 | -524.0 | -340.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
