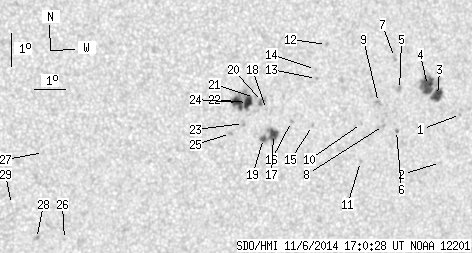

SDO HMI 2014-11-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.71 | 110.38 | 24.18 | 62.21 | -5.00 | 87.52 | 26.96 | 251.80 | 0.4767 | 19.2 | -78.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.56 | -5.39 | 92.11 | 31.54 | 253.92 | 0.5442 | 648.0 | 542.9 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -6.81 | 91.50 | 30.94 | 251.08 | 0.5417 | 478.0 | 374.9 | |
| 7.33 | 34.52 | 4.28 | 20.07 | -4.79 | 91.27 | 30.71 | 254.60 | 0.5300 | 798.2 | 481.6 | |
| 13.38 | -3.00 | 7.76 | -3.00 | -4.47 | 90.91 | 30.35 | 254.99 | 0.5236 | 962.7 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.54 | -4.56 | 89.95 | 29.39 | 254.35 | 0.5101 | 853.0 | 726.2 | |
| 0.35 | 1.29 | 0.20 | 0.75 | -5.79 | 89.91 | 29.35 | 252.01 | 0.5147 | 627.5 | 526.3 | |
| 0.00 | 2.93 | 0.00 | 1.68 | -3.59 | 89.74 | 29.18 | 256.09 | 0.5033 | 805.0 | 601.1 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -5.62 | 89.45 | 28.89 | 252.05 | 0.5075 | 691.0 | 575.5 | |
| 0.00 | 2.42 | 0.00 | 1.38 | -4.93 | 89.25 | 28.69 | 253.27 | 0.5015 | 947.0 | 774.8 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -5.54 | 88.70 | 28.14 | 251.76 | 0.4963 | 896.0 | 690.2 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -6.69 | 88.73 | 28.17 | 249.60 | 0.5023 | 690.0 | 625.4 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -3.13 | 87.43 | 26.87 | 255.86 | 0.4673 | 753.0 | 635.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -4.14 | 87.13 | 26.57 | 253.60 | 0.4670 | 793.0 | 681.6 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -3.87 | 87.09 | 26.53 | 254.13 | 0.4652 | 668.0 | 581.6 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -5.55 | 87.05 | 26.49 | 250.68 | 0.4725 | -661.0 | -544.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -5.40 | 86.35 | 25.79 | 250.47 | 0.4615 | -678.0 | -627.6 | |
| 6.04 | 13.72 | 3.36 | 7.62 | -5.78 | 85.77 | 25.21 | 249.28 | 0.4550 | -917.4 | -643.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -5.02 | 85.51 | 24.95 | 250.67 | 0.4471 | -739.0 | -600.4 | |
| 1.64 | -17.00 | 0.91 | -17.00 | -5.89 | 85.44 | 24.88 | 248.80 | 0.4508 | -849.2 | 999999 | |
| 0.00 | 4.40 | 0.00 | 2.43 | -4.77 | 85.36 | 24.80 | 251.09 | 0.4438 | -629.0 | -749.8 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -4.65 | 85.10 | 24.54 | 251.18 | 0.4392 | -430.0 | -514.1 | |
| 6.64 | 28.05 | 3.65 | 15.40 | -4.79 | 84.87 | 24.31 | 250.70 | 0.4366 | -1028.8 | -648.5 | |
| 0.00 | 2.33 | 0.00 | 1.28 | -5.42 | 84.77 | 24.21 | 249.26 | 0.4383 | -929.0 | -742.8 | |
| 7.33 | -22.00 | 4.02 | -22.00 | -4.78 | 84.55 | 23.99 | 250.47 | 0.4316 | -1179.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -5.71 | 84.35 | 23.79 | 248.30 | 0.4339 | -876.0 | -732.7 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -8.78 | 79.16 | 18.60 | 235.76 | 0.3830 | -856.0 | -672.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -6.13 | 78.39 | 17.83 | 240.90 | 0.3500 | 7.0 | 3.7 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -8.73 | 78.28 | 17.71 | 234.56 | 0.3708 | -803.0 | -735.6 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -7.68 | 77.44 | 16.88 | 235.69 | 0.3500 | -9.0 | -14.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
