SDO HMI 2014-11-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.71 | 0.00 | 4.68 | -15.86 | 53.65 | -6.91 | 162.23 | 0.3792 | 166.0 | 173.5 | |
|
previous
or next observation for the same group /

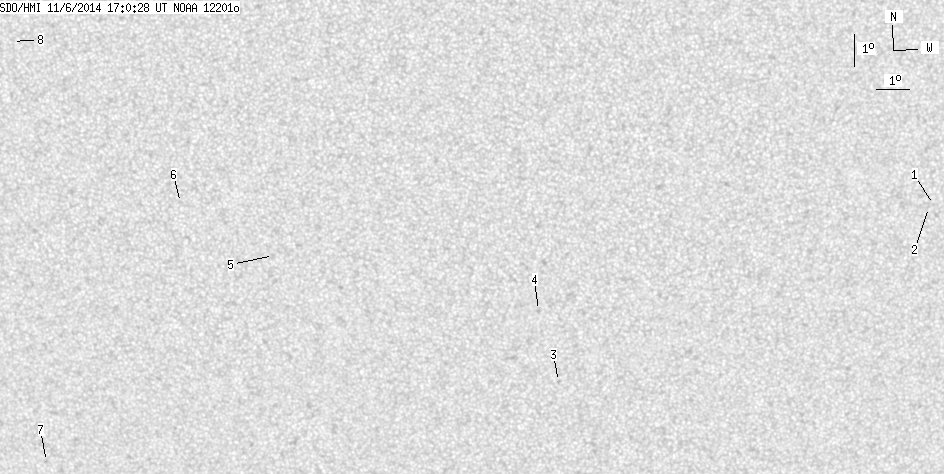

back to the solar disc SDO HMI 2014-11-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.07 | 72.04 | 11.48 | 213.85 | 0.3496 | -11.0 | -2.3 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -13.16 | 71.89 | 11.33 | 213.35 | 0.3495 | 2.0 | 1.7 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -18.56 | 60.52 | -0.04 | 179.90 | 0.3823 | 809.0 | 623.8 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -16.29 | 59.91 | -0.65 | 178.17 | 0.3455 | 721.0 | 597.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -14.60 | 51.75 | -8.82 | 154.80 | 0.3498 | 16.0 | -2.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -12.98 | 48.93 | -11.63 | 145.66 | 0.3498 | 5.0 | 0.1 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -21.30 | 43.96 | -16.60 | 147.75 | 0.5009 | -218.0 | -277.5 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -8.12 | 43.92 | -16.64 | 125.74 | 0.3508 | 4.0 | 2.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
