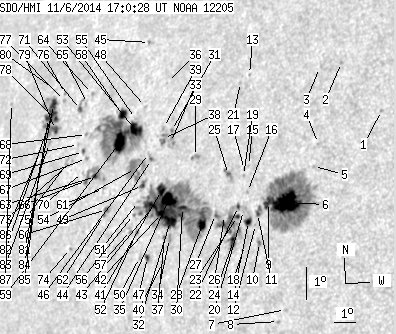

SDO HMI 2014-11-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 169.75 | 841.48 | 134.78 | 659.95 | 15.62 | 10.31 | -50.25 | 72.87 | 0.7753 | -25.1 | 97.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.76 | 18.18 | 18.79 | -41.77 | 67.34 | 0.6882 | -657.0 | -529.9 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 19.58 | 16.63 | -43.93 | 66.13 | 0.7172 | -674.0 | -542.8 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 19.38 | 15.72 | -44.84 | 66.68 | 0.7267 | -431.0 | -441.8 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 17.07 | 16.43 | -44.14 | 69.63 | 0.7125 | 640.0 | 530.9 | |
| 0.00 | 1.38 | 0.00 | 0.97 | 16.36 | 16.41 | -44.15 | 70.60 | 0.7109 | -308.0 | -222.2 | |
| 34.60 | 210.73 | 24.55 | 149.35 | 15.22 | 15.56 | -45.00 | 72.39 | 0.7183 | -1031.9 | -391.2 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 12.01 | 16.28 | -44.28 | 76.73 | 0.7040 | -686.0 | -611.7 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 11.64 | 16.06 | -44.50 | 77.29 | 0.7061 | -737.0 | -580.1 | |
| 4.75 | -6.00 | 3.41 | -6.00 | 15.19 | 14.77 | -45.79 | 72.61 | 0.7272 | -551.7 | 999999 | |
| 0.52 | 3.02 | 0.37 | 2.17 | 13.97 | 14.70 | -45.86 | 74.29 | 0.7258 | -725.7 | -564.6 | |
| 1.12 | -6.00 | 0.81 | -6.00 | 14.83 | 14.38 | -46.18 | 73.17 | 0.7310 | -574.7 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 14.50 | 14.38 | -46.18 | 73.63 | 0.7304 | -570.0 | -538.9 | |
| 0.00 | 1.12 | 0.00 | 0.85 | 19.03 | 12.64 | -47.92 | 68.02 | 0.7589 | -485.0 | -366.9 | |
| 3.62 | 5.78 | 2.64 | 4.20 | 14.58 | 14.05 | -46.51 | 73.59 | 0.7343 | -673.5 | -433.3 | |
| 0.00 | 0.69 | 0.00 | 0.51 | 16.26 | 13.56 | -47.00 | 71.43 | 0.7430 | -479.0 | -428.6 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 15.48 | 13.75 | -46.81 | 72.44 | 0.7394 | -496.0 | -412.3 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 16.13 | 13.41 | -47.15 | 71.63 | 0.7444 | -226.0 | -229.0 | |
| 0.00 | 1.12 | 0.00 | 0.81 | 13.85 | 14.07 | -46.49 | 74.57 | 0.7329 | -585.0 | -452.0 | |
| 0.00 | 1.12 | 0.00 | 0.83 | 15.95 | 13.43 | -47.13 | 71.87 | 0.7439 | -332.0 | -324.4 | |
| 0.00 | 1.98 | 0.00 | 1.45 | 14.90 | 13.74 | -46.82 | 73.22 | 0.7384 | 39.0 | 29.2 | |
| 0.00 | 1.04 | 0.00 | 0.79 | 18.76 | 12.32 | -48.24 | 68.45 | 0.7617 | -156.0 | -238.0 | |
| 1.12 | 43.32 | 0.83 | 31.89 | 15.01 | 13.48 | -47.08 | 73.12 | 0.7415 | -381.0 | 57.3 | |
| 1.47 | -22.00 | 1.08 | -22.00 | 14.70 | 13.52 | -47.04 | 73.52 | 0.7405 | -289.5 | 999999 | |
| 5.44 | -22.00 | 3.98 | -22.00 | 13.97 | 13.54 | -47.02 | 74.49 | 0.7391 | -521.5 | 999999 | |
| 0.00 | 6.39 | 0.00 | 4.77 | 15.95 | 12.74 | -47.82 | 72.02 | 0.7515 | 790.0 | 601.3 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 14.71 | 12.93 | -47.63 | 73.63 | 0.7472 | 242.0 | 244.7 | |
| 0.00 | 1.90 | 0.00 | 1.42 | 14.72 | 12.51 | -48.05 | 73.69 | 0.7518 | 885.0 | 769.1 | |
| 6.39 | 236.79 | 4.82 | 183.93 | 14.42 | 11.99 | -48.57 | 74.17 | 0.7570 | -649.7 | 264.8 | |
| 0.00 | 3.97 | 0.00 | 3.07 | 16.42 | 11.03 | -49.53 | 71.75 | 0.7707 | 726.0 | 639.2 | |
| 3.11 | -28.00 | 2.40 | -28.00 | 14.85 | 10.92 | -49.64 | 73.79 | 0.7693 | 939.2 | 999999 | |
| 0.35 | 1.47 | 0.28 | 1.17 | 17.15 | 9.59 | -50.97 | 71.10 | 0.7869 | 690.0 | 650.3 | |
| 10.61 | -28.00 | 8.26 | -28.00 | 14.44 | 10.48 | -50.08 | 74.40 | 0.7735 | -543.9 | 999999 | |
| 0.00 | 6.73 | 0.00 | 5.36 | 16.78 | 9.68 | -50.88 | 71.54 | 0.7854 | 781.0 | 711.6 | |
| 0.00 | 3.28 | 0.00 | 2.54 | 13.89 | 10.59 | -49.97 | 75.08 | 0.7715 | -695.0 | -545.8 | |
| 12.94 | -28.00 | 10.15 | -28.00 | 15.06 | 10.18 | -50.38 | 73.64 | 0.7775 | 1191.4 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 18.59 | 8.81 | -51.75 | 69.45 | 0.7972 | 487.0 | 446.2 | |
| 0.52 | 1.73 | 0.40 | 1.34 | 13.91 | 10.35 | -50.21 | 75.09 | 0.7742 | -579.0 | -510.5 | |
| 0.00 | 6.39 | 0.00 | 5.13 | 16.89 | 9.29 | -51.27 | 71.48 | 0.7895 | 754.0 | 670.8 | |
| 0.00 | 1.38 | 0.00 | 1.11 | 17.22 | 9.17 | -51.39 | 71.09 | 0.7913 | 613.0 | 535.6 | |
| 0.00 | 1.12 | 0.00 | 0.87 | 13.16 | 10.47 | -50.09 | 76.04 | 0.7720 | 470.0 | 398.6 | |
| 6.47 | -28.00 | 5.13 | -28.00 | 15.32 | 9.76 | -50.80 | 73.39 | 0.7823 | 821.2 | 999999 | |
| 5.70 | -28.00 | 4.48 | -28.00 | 14.62 | 9.98 | -50.58 | 74.23 | 0.7790 | -285.6 | 999999 | |
| 4.49 | -28.00 | 3.57 | -28.00 | 14.85 | 9.52 | -51.04 | 74.02 | 0.7841 | -509.1 | 999999 | |
| 0.60 | 1.73 | 0.49 | 1.39 | 16.22 | 8.94 | -51.62 | 72.37 | 0.7920 | 726.3 | 640.7 | |
| 0.00 | 1.98 | 0.00 | 1.68 | 19.76 | 7.34 | -53.22 | 68.30 | 0.8135 | 547.0 | 397.4 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 16.40 | 8.73 | -51.83 | 72.19 | 0.7945 | 615.0 | 583.2 | |
| 1.64 | 3.37 | 1.29 | 2.65 | 13.27 | 9.71 | -50.85 | 76.00 | 0.7802 | -646.4 | -511.3 | |
| 0.00 | 1.12 | 0.00 | 0.93 | 17.81 | 8.01 | -52.55 | 70.57 | 0.8037 | 623.0 | 437.6 | |
| 2.16 | 5.70 | 1.74 | 4.60 | 15.42 | 8.78 | -51.78 | 73.41 | 0.7925 | -293.8 | -167.7 | |
| 0.00 | 1.73 | 0.00 | 1.37 | 13.25 | 9.33 | -51.23 | 76.07 | 0.7842 | -494.0 | -324.6 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 14.93 | 8.75 | -51.81 | 74.03 | 0.7922 | 46.0 | 100.9 | |
| 0.52 | 1.38 | 0.42 | 1.11 | 14.00 | 8.95 | -51.61 | 75.18 | 0.7890 | -466.0 | -363.3 | |
| 11.48 | 140.92 | 9.52 | 119.01 | 17.09 | 7.79 | -52.77 | 71.49 | 0.8048 | 844.9 | 358.5 | |
| 0.00 | 27.44 | 0.00 | 22.46 | 15.91 | 8.25 | -52.31 | 72.88 | 0.7986 | 302.0 | 270.5 | |
| 0.00 | 0.95 | 0.00 | 0.79 | 17.42 | 7.66 | -52.90 | 71.11 | 0.8066 | 471.0 | 374.7 | |
| 0.00 | 0.78 | 0.00 | 0.63 | 14.53 | 8.63 | -51.93 | 74.55 | 0.7929 | -157.0 | -106.9 | |
| 0.00 | 2.42 | 0.00 | 1.95 | 14.04 | 8.64 | -51.92 | 75.16 | 0.7922 | -53.0 | 9.3 | |
| 5.61 | -53.00 | 4.75 | -53.00 | 17.51 | 6.94 | -53.62 | 71.12 | 0.8137 | 713.6 | 999999 | |
| 16.65 | -53.00 | 14.01 | -53.00 | 16.65 | 7.14 | -53.42 | 72.13 | 0.8106 | -450.0 | 999999 | |
| 1.21 | 3.02 | 1.01 | 2.52 | 14.61 | 7.23 | -53.33 | 74.64 | 0.8071 | 759.7 | 714.4 | |
| 0.00 | 0.86 | 0.00 | 0.73 | 15.23 | 6.85 | -53.71 | 73.92 | 0.8116 | -321.0 | -259.7 | |
| 0.00 | 1.04 | 0.00 | 0.87 | 14.42 | 7.14 | -53.42 | 74.88 | 0.8078 | 588.0 | 552.6 | |
| 2.16 | 19.93 | 1.85 | 17.08 | 15.57 | 6.30 | -54.26 | 73.58 | 0.8173 | 538.1 | 71.9 | |
| 0.00 | 1.73 | 0.00 | 1.53 | 18.06 | 5.07 | -55.49 | 70.76 | 0.8320 | 512.0 | 406.0 | |
| 0.00 | 0.60 | 0.00 | 0.54 | 17.74 | 4.94 | -55.62 | 71.15 | 0.8328 | 174.0 | 188.6 | |
| 1.64 | -63.00 | 1.42 | -63.00 | 15.42 | 5.88 | -54.68 | 73.81 | 0.8213 | -475.3 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.35 | 16.08 | 5.61 | -54.95 | 73.05 | 0.8245 | -621.0 | -423.1 | |
| 0.00 | 1.29 | 0.00 | 1.14 | 16.81 | 5.31 | -55.25 | 72.22 | 0.8282 | -266.0 | -174.5 | |
| 1.04 | 2.24 | 0.91 | 1.97 | 16.29 | 5.36 | -55.20 | 72.84 | 0.8271 | -323.9 | -237.2 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 15.65 | 5.57 | -54.99 | 73.58 | 0.8244 | -353.0 | -360.7 | |
| 1.55 | 5.70 | 1.39 | 5.11 | 17.54 | 4.64 | -55.92 | 71.44 | 0.8352 | 625.5 | 390.2 | |
| 0.00 | 0.78 | 0.00 | 0.69 | 16.48 | 5.01 | -55.55 | 72.65 | 0.8306 | -235.0 | -193.1 | |
| 0.00 | 0.86 | 0.00 | 0.76 | 15.98 | 4.89 | -55.67 | 73.26 | 0.8312 | -391.0 | -311.0 | |
| 0.00 | 1.21 | 0.00 | 1.04 | 13.35 | 5.77 | -54.79 | 76.35 | 0.8202 | 654.0 | 536.6 | |
| 0.00 | 3.80 | 0.00 | 3.38 | 15.91 | 4.64 | -55.92 | 73.38 | 0.8334 | -140.0 | -192.2 | |
| 0.00 | 1.38 | 0.00 | 1.27 | 17.98 | 3.58 | -56.98 | 71.07 | 0.8453 | 532.0 | 408.9 | |
| 0.00 | 1.29 | 0.00 | 1.19 | 17.77 | 3.62 | -56.94 | 71.31 | 0.8446 | 576.0 | 468.9 | |
| 3.02 | 44.53 | 2.79 | 41.44 | 17.17 | 3.40 | -57.16 | 72.05 | 0.8460 | 828.0 | 270.4 | |
| 3.71 | -78.00 | 3.41 | -78.00 | 16.87 | 3.54 | -57.02 | 72.39 | 0.8444 | 570.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.81 | 18.07 | 2.89 | -57.67 | 71.06 | 0.8514 | 319.0 | 235.7 | |
| 5.78 | -78.00 | 5.39 | -78.00 | 17.61 | 3.06 | -57.50 | 71.57 | 0.8494 | 473.7 | 999999 | |
| 4.14 | -78.00 | 3.85 | -78.00 | 17.34 | 3.14 | -57.42 | 71.88 | 0.8484 | 704.1 | 999999 | |
| 0.00 | 2.33 | 0.00 | 2.15 | 16.43 | 3.40 | -57.16 | 72.92 | 0.8452 | 376.0 | 276.9 | |
| 3.62 | -78.00 | 3.38 | -78.00 | 17.18 | 2.99 | -57.57 | 72.09 | 0.8496 | 605.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.12 | 15.83 | 3.15 | -57.41 | 73.66 | 0.8469 | 511.0 | 406.9 | |
| 0.00 | 0.60 | 0.00 | 0.56 | 16.16 | 2.94 | -57.62 | 73.29 | 0.8490 | 598.0 | 558.0 | |
| 0.00 | 0.95 | 0.00 | 0.95 | 17.51 | 0.57 | -59.99 | 71.99 | 0.8703 | -344.0 | -322.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
