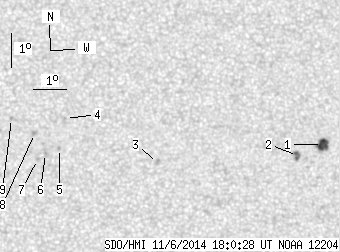

SDO HMI 2014-11-06 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.85 | 25.99 | 4.03 | 13.19 | 5.62 | 72.17 | 12.16 | 280.32 | 0.2134 | -94.2 | -149.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.85 | 10.96 | 4.03 | 5.63 | 5.64 | 75.34 | 15.33 | 277.43 | 0.2666 | -1053.4 | -748.6 | |
| 0.00 | 4.66 | 0.00 | 2.38 | 5.33 | 74.56 | 14.55 | 276.52 | 0.2530 | -1231.0 | -950.6 | |
| 0.00 | 2.42 | 0.00 | 1.22 | 5.19 | 70.28 | 10.27 | 278.04 | 0.1802 | -817.0 | -630.8 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 6.53 | 67.52 | 7.52 | 290.25 | 0.1391 | 716.0 | 491.9 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 5.64 | 67.33 | 7.32 | 284.33 | 0.1315 | 879.0 | 748.4 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 5.49 | 66.91 | 6.90 | 284.00 | 0.1238 | 750.0 | 619.6 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 5.32 | 66.66 | 6.66 | 283.03 | 0.1190 | 884.0 | 691.2 | |
| 0.00 | 1.90 | 0.00 | 0.95 | 6.09 | 66.58 | 6.58 | 289.44 | 0.1213 | 1000.0 | 879.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 6.54 | 65.90 | 5.89 | 295.20 | 0.1132 | 931.0 | 772.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
