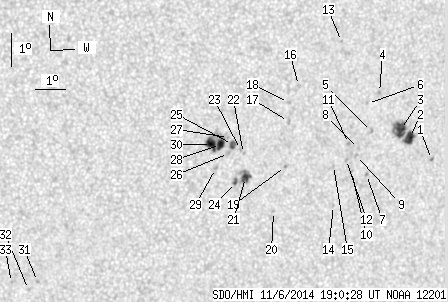

SDO HMI 2014-11-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.75 | 105.34 | 22.14 | 59.97 | -5.00 | 87.45 | 28.00 | 252.48 | 0.4919 | 15.2 | -23.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.98 | -5.46 | 92.17 | 32.71 | 254.36 | 0.5608 | 628.0 | 509.1 | |
| 7.51 | 27.18 | 4.43 | 16.01 | -4.77 | 91.35 | 31.90 | 255.19 | 0.5468 | 767.9 | 708.8 | |
| 10.44 | -2.00 | 6.14 | -2.00 | -4.52 | 91.02 | 31.57 | 255.49 | 0.5412 | 957.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -3.38 | 90.24 | 30.79 | 257.23 | 0.5261 | 760.0 | 502.3 | |
| 0.00 | 2.59 | 0.00 | 1.51 | -4.54 | 90.01 | 30.56 | 254.97 | 0.5269 | 728.0 | 632.5 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -3.70 | 89.84 | 30.39 | 256.46 | 0.5213 | 905.0 | 689.5 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -5.83 | 89.91 | 30.45 | 252.56 | 0.5306 | 711.0 | 602.6 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -5.04 | 89.59 | 30.13 | 253.84 | 0.5227 | 773.0 | 575.4 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -5.25 | 89.53 | 30.07 | 253.43 | 0.5227 | 751.0 | 569.1 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -5.72 | 89.38 | 29.93 | 252.47 | 0.5227 | 762.0 | 677.2 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -4.88 | 89.23 | 29.78 | 253.96 | 0.5170 | 868.0 | 655.4 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -5.36 | 89.19 | 29.74 | 253.04 | 0.5184 | 820.0 | 662.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | -1.81 | 88.90 | 29.44 | 259.69 | 0.5014 | 710.0 | 578.0 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -6.73 | 88.82 | 29.37 | 250.30 | 0.5194 | 731.0 | 609.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -5.52 | 88.75 | 29.30 | 252.49 | 0.5128 | 656.0 | 538.4 | |
| 0.00 | 1.73 | 0.00 | 0.98 | -3.08 | 87.46 | 28.01 | 256.55 | 0.4842 | 761.0 | 565.5 | |
| 0.00 | 2.33 | 0.00 | 1.32 | -4.15 | 87.16 | 27.71 | 254.25 | 0.4838 | 548.0 | 549.1 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -3.58 | 87.14 | 27.69 | 255.38 | 0.4812 | 439.0 | 422.5 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -5.50 | 87.12 | 27.66 | 251.55 | 0.4892 | -655.0 | -559.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -6.84 | 86.79 | 27.33 | 248.73 | 0.4912 | -725.0 | -548.0 | |
| 4.83 | 14.58 | 2.71 | 8.17 | -5.79 | 85.79 | 26.34 | 250.10 | 0.4714 | -904.6 | -701.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -5.06 | 85.69 | 26.24 | 251.50 | 0.4663 | -520.0 | -496.6 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -4.94 | 85.59 | 26.13 | 251.68 | 0.4642 | -690.0 | -529.9 | |
| 0.78 | -21.00 | 0.43 | -21.00 | -5.93 | 85.47 | 26.01 | 249.58 | 0.4674 | -884.9 | 999999 | |
| 2.33 | 4.49 | 1.30 | 2.50 | -4.78 | 85.31 | 25.86 | 251.83 | 0.4594 | -854.7 | -652.8 | |
| 0.00 | 1.98 | 0.00 | 1.11 | -5.05 | 85.19 | 25.74 | 251.19 | 0.4589 | -721.0 | -537.3 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -4.56 | 85.17 | 25.72 | 252.18 | 0.4563 | -690.0 | -601.7 | |
| 5.09 | 25.54 | 2.83 | 14.16 | -4.77 | 84.92 | 25.46 | 251.58 | 0.4535 | -1033.6 | -593.6 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -5.48 | 84.78 | 25.33 | 249.98 | 0.4551 | -874.0 | -774.7 | |
| 7.77 | -28.00 | 4.30 | -28.00 | -4.76 | 84.62 | 25.16 | 251.39 | 0.4490 | -1163.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -8.75 | 79.17 | 19.71 | 237.36 | 0.3977 | -870.0 | -651.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -8.99 | 78.90 | 19.44 | 236.49 | 0.3960 | -767.0 | -560.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -8.76 | 78.34 | 18.89 | 236.21 | 0.3866 | -811.0 | -658.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
