SDO HMI 2014-11-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 13.38 | 3.10 | 9.75 | -16.04 | 16.20 | -43.25 | 116.07 | 0.7351 | -384.0 | -208.0 | |
|
previous
or next observation for the same group /

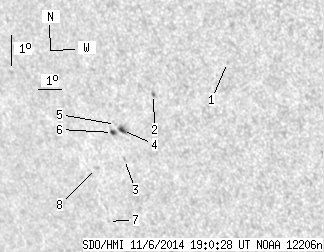

back to the solar disc SDO HMI 2014-11-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.81 | -13.70 | 20.86 | -38.59 | 115.33 | 0.6728 | 641.0 | 473.8 | |
| 0.00 | 1.55 | 0.00 | 1.10 | -14.84 | 17.63 | -41.82 | 115.21 | 0.7148 | 675.0 | 611.0 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -16.97 | 15.84 | -43.61 | 117.07 | 0.7433 | -580.0 | -519.1 | |
| 2.42 | 3.80 | 1.77 | 2.77 | -16.04 | 16.02 | -43.43 | 115.99 | 0.7374 | -932.8 | -794.1 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -15.87 | 15.77 | -43.69 | 115.65 | 0.7393 | -729.0 | -653.0 | |
| 1.81 | 3.28 | 1.33 | 2.41 | -16.13 | 15.57 | -43.89 | 115.88 | 0.7426 | -698.9 | -502.2 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -19.01 | 14.49 | -44.97 | 118.93 | 0.7658 | -435.0 | -440.7 | |
| 0.00 | 2.07 | 0.00 | 1.57 | -17.31 | 14.52 | -44.94 | 116.88 | 0.7584 | -486.0 | -313.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
