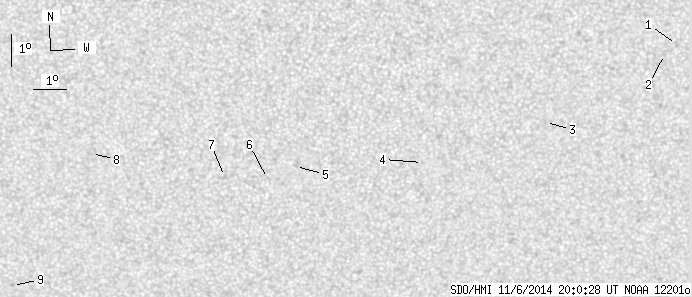

SDO HMI 2014-11-06 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 9.84 | 1.09 | 5.24 | -15.67 | 60.94 | 2.04 | 187.08 | 0.3610 | 70.0 | -56.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.33 | 0.00 | 1.23 | -12.46 | 71.19 | 12.29 | 216.71 | 0.3492 | 2.0 | -5.1 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -12.77 | 70.83 | 11.93 | 215.38 | 0.3497 | -8.0 | -0.7 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -14.84 | 67.22 | 8.32 | 203.67 | 0.3499 | 13.0 | 10.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -16.06 | 63.44 | 4.54 | 192.63 | 0.3497 | 754.0 | 663.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -16.17 | 59.51 | 0.61 | 181.72 | 0.3434 | 746.0 | 638.9 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -16.55 | 58.65 | -0.25 | 179.30 | 0.3495 | -5.0 | 5.0 | |
| 2.07 | 2.24 | 1.09 | 1.19 | -16.49 | 57.32 | -1.59 | 175.62 | 0.3494 | 0.1 | -4.5 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -15.78 | 53.21 | -5.69 | 164.08 | 0.3497 | -47.0 | -35.3 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -20.02 | 50.55 | -8.36 | 161.30 | 0.4276 | -819.0 | -631.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
