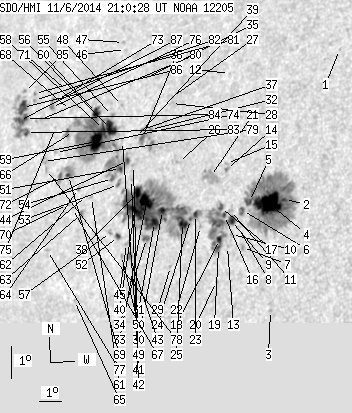

SDO HMI 2014-11-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 166.95 | 893.35 | 125.59 | 668.94 | 15.63 | 10.55 | -47.80 | 72.39 | 0.7491 | -73.6 | 70.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.65 | 20.00 | 17.15 | -41.20 | 64.56 | 0.6877 | -620.0 | -450.2 | |
| 1.47 | 216.60 | 0.99 | 148.04 | 15.34 | 16.17 | -42.18 | 71.50 | 0.6851 | -1157.3 | -398.4 | |
| 0.00 | 1.21 | 0.00 | 0.81 | 11.99 | 16.33 | -42.02 | 76.35 | 0.6762 | -710.0 | -575.1 | |
| 36.33 | -2.00 | 24.87 | -2.00 | 15.19 | 15.54 | -42.81 | 71.89 | 0.6924 | -1076.0 | 999999 | |
| 4.06 | -2.00 | 2.81 | -2.00 | 15.22 | 14.72 | -43.63 | 72.06 | 0.7021 | -558.2 | 999999 | |
| 1.81 | 4.49 | 1.26 | 3.12 | 14.93 | 14.50 | -43.85 | 72.51 | 0.7042 | -635.8 | -477.1 | |
| 0.00 | 2.42 | 0.00 | 1.67 | 13.82 | 14.77 | -43.58 | 74.02 | 0.6987 | -696.0 | -571.8 | |
| 0.00 | 1.12 | 0.00 | 0.78 | 14.42 | 14.46 | -43.89 | 73.25 | 0.7036 | -743.0 | -682.5 | |
| 4.31 | 66.45 | 3.02 | 46.82 | 14.61 | 14.11 | -44.24 | 73.05 | 0.7081 | -806.7 | -60.0 | |
| 0.00 | 1.55 | 0.00 | 1.08 | 14.19 | 14.21 | -44.14 | 73.62 | 0.7060 | -655.0 | -500.2 | |
| 0.00 | 1.47 | 0.00 | 1.03 | 14.91 | 13.99 | -44.36 | 72.66 | 0.7102 | -50.0 | -114.6 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 19.06 | 12.67 | -45.67 | 67.35 | 0.7350 | -426.0 | -427.3 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 13.82 | 14.13 | -44.22 | 74.15 | 0.7063 | -645.0 | -471.0 | |
| 0.00 | 2.07 | 0.00 | 1.47 | 16.14 | 13.48 | -44.87 | 71.08 | 0.7187 | -617.0 | -470.4 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 16.32 | 13.42 | -44.92 | 70.85 | 0.7198 | -557.0 | -454.5 | |
| 1.55 | -9.00 | 1.09 | -9.00 | 14.75 | 13.77 | -44.58 | 72.93 | 0.7124 | -439.0 | 999999 | |
| 1.81 | -9.00 | 1.28 | -9.00 | 14.98 | 13.54 | -44.81 | 72.66 | 0.7156 | -446.1 | 999999 | |
| 2.93 | -9.00 | 2.06 | -9.00 | 14.02 | 13.74 | -44.61 | 73.96 | 0.7113 | -618.4 | 999999 | |
| 1.55 | -9.00 | 1.09 | -9.00 | 13.78 | 13.75 | -44.59 | 74.29 | 0.7107 | -825.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.90 | 12.75 | 13.90 | -44.44 | 75.70 | 0.7071 | -599.0 | -431.4 | |
| 0.00 | 15.88 | 0.00 | 11.38 | 15.90 | 12.84 | -45.51 | 71.57 | 0.7255 | 672.0 | 499.3 | |
| 0.00 | 1.64 | 0.00 | 1.17 | 14.37 | 12.82 | -45.53 | 73.66 | 0.7227 | -281.0 | -127.7 | |
| 2.50 | 238.09 | 1.80 | 176.88 | 14.72 | 12.51 | -45.84 | 73.24 | 0.7270 | 978.4 | 206.4 | |
| 0.78 | -23.00 | 0.56 | -23.00 | 14.56 | 12.33 | -46.02 | 73.50 | 0.7287 | -148.1 | 999999 | |
| 8.63 | -23.00 | 6.25 | -23.00 | 14.46 | 12.00 | -46.35 | 73.71 | 0.7323 | -686.3 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.46 | 16.26 | 11.30 | -47.05 | 71.44 | 0.7436 | 694.0 | 534.1 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 18.24 | 10.35 | -48.00 | 69.05 | 0.7581 | 571.0 | 473.2 | |
| 0.00 | 1.73 | 0.00 | 1.30 | 18.03 | 10.38 | -47.97 | 69.32 | 0.7573 | 694.0 | 614.0 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 13.11 | 11.81 | -46.54 | 75.57 | 0.7323 | -514.0 | -441.2 | |
| 3.11 | -23.00 | 2.29 | -23.00 | 14.78 | 11.01 | -47.34 | 73.47 | 0.7440 | 986.5 | 999999 | |
| 5.52 | -23.00 | 4.09 | -23.00 | 14.40 | 10.75 | -47.60 | 74.02 | 0.7463 | -607.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.79 | 17.19 | 9.69 | -48.66 | 70.56 | 0.7630 | 746.0 | 701.8 | |
| 11.99 | -23.00 | 9.00 | -23.00 | 15.01 | 10.21 | -48.14 | 73.31 | 0.7534 | 1197.9 | 999999 | |
| 2.42 | 4.31 | 1.80 | 3.21 | 13.90 | 10.52 | -47.82 | 74.72 | 0.7481 | -746.7 | -590.5 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 18.76 | 8.91 | -49.44 | 68.72 | 0.7743 | 649.0 | 540.9 | |
| 2.07 | 15.10 | 1.59 | 11.52 | 16.93 | 9.40 | -48.95 | 70.96 | 0.7655 | 846.7 | 714.5 | |
| 0.43 | 1.47 | 0.33 | 1.13 | 17.18 | 9.31 | -49.04 | 70.67 | 0.7669 | 565.8 | 527.5 | |
| 5.78 | -23.00 | 4.38 | -23.00 | 15.26 | 9.71 | -48.64 | 73.07 | 0.7592 | 911.1 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.60 | 16.92 | 9.07 | -49.28 | 71.05 | 0.7690 | 552.0 | 482.4 | |
| 3.80 | -23.00 | 2.87 | -23.00 | 14.72 | 9.74 | -48.61 | 73.78 | 0.7580 | -548.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.06 | 16.07 | 9.26 | -49.08 | 72.11 | 0.7654 | 356.0 | 428.9 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 15.64 | 9.31 | -49.04 | 72.65 | 0.7642 | 593.0 | 423.2 | |
| 2.24 | 4.06 | 1.69 | 3.05 | 13.36 | 9.89 | -48.46 | 75.55 | 0.7544 | -821.6 | -591.7 | |
| 1.90 | 185.96 | 1.47 | 148.54 | 16.21 | 8.93 | -49.42 | 71.99 | 0.7691 | 726.4 | 276.9 | |
| 0.00 | 1.98 | 0.00 | 1.50 | 13.71 | 9.65 | -48.69 | 75.12 | 0.7575 | -587.0 | -482.1 | |
| 0.00 | 0.52 | 0.00 | 0.42 | 19.57 | 7.54 | -50.81 | 68.03 | 0.7898 | 519.0 | 455.3 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 19.78 | 7.34 | -51.01 | 67.81 | 0.7922 | 556.0 | 475.6 | |
| 0.00 | 1.29 | 0.00 | 1.02 | 17.86 | 8.09 | -50.26 | 70.05 | 0.7809 | 596.0 | 527.5 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 16.77 | 8.50 | -49.85 | 71.36 | 0.7747 | 356.0 | 386.0 | |
| 0.00 | 1.73 | 0.00 | 1.31 | 13.34 | 9.52 | -48.83 | 75.62 | 0.7584 | -554.0 | -386.2 | |
| 1.55 | -44.00 | 1.20 | -44.00 | 15.95 | 8.68 | -49.66 | 72.37 | 0.7713 | -227.9 | 999999 | |
| 1.90 | 3.19 | 1.45 | 2.44 | 13.90 | 9.23 | -49.12 | 74.93 | 0.7624 | -565.1 | -406.7 | |
| 0.78 | 3.37 | 0.60 | 2.60 | 15.46 | 8.75 | -49.60 | 72.99 | 0.7699 | -433.2 | -322.9 | |
| 1.55 | -44.00 | 1.21 | -44.00 | 15.63 | 8.41 | -49.94 | 72.83 | 0.7738 | -374.7 | 999999 | |
| 0.00 | 2.50 | 0.00 | 1.99 | 17.53 | 7.72 | -50.62 | 70.54 | 0.7840 | 511.0 | 404.2 | |
| 10.87 | -44.00 | 8.61 | -44.00 | 17.13 | 7.78 | -50.57 | 71.03 | 0.7828 | 915.5 | 999999 | |
| 0.00 | 2.68 | 0.00 | 2.06 | 14.00 | 8.82 | -49.53 | 74.86 | 0.7670 | -175.0 | -112.5 | |
| 1.90 | -44.00 | 1.51 | -44.00 | 17.09 | 7.45 | -50.90 | 71.16 | 0.7861 | 972.5 | 999999 | |
| 16.91 | -44.00 | 13.54 | -44.00 | 16.71 | 7.24 | -51.10 | 71.67 | 0.7876 | -578.0 | 999999 | |
| 5.35 | -44.00 | 4.32 | -44.00 | 17.58 | 6.91 | -51.44 | 70.63 | 0.7924 | 660.3 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.82 | 15.01 | 7.59 | -50.76 | 73.76 | 0.7814 | -242.0 | -259.5 | |
| 0.00 | 0.60 | 0.00 | 0.48 | 15.06 | 7.33 | -51.02 | 73.74 | 0.7842 | -231.0 | -129.9 | |
| 0.86 | 2.24 | 0.69 | 1.78 | 14.50 | 7.27 | -51.08 | 74.45 | 0.7842 | 748.2 | 677.6 | |
| 0.00 | 1.81 | 0.00 | 1.45 | 15.25 | 6.87 | -51.48 | 73.57 | 0.7892 | -396.0 | -293.5 | |
| 0.00 | 1.04 | 0.00 | 0.81 | 11.89 | 7.68 | -50.67 | 77.75 | 0.7769 | -435.0 | -337.2 | |
| 0.00 | 1.38 | 0.00 | 1.13 | 16.95 | 5.99 | -52.36 | 71.59 | 0.8006 | 291.0 | 272.8 | |
| 0.00 | 0.95 | 0.00 | 0.76 | 14.63 | 6.78 | -51.57 | 74.36 | 0.7894 | 485.0 | 457.5 | |
| 0.00 | 0.43 | 0.00 | 0.36 | 17.58 | 5.58 | -52.77 | 70.88 | 0.8055 | 493.0 | 470.0 | |
| 1.38 | 17.69 | 1.13 | 14.45 | 15.61 | 6.24 | -52.11 | 73.21 | 0.7961 | 674.9 | 193.3 | |
| 0.00 | 0.52 | 0.00 | 0.42 | 14.74 | 6.50 | -51.85 | 74.27 | 0.7924 | -247.0 | -241.3 | |
| 0.00 | 1.04 | 0.00 | 0.87 | 18.17 | 5.12 | -53.23 | 70.23 | 0.8110 | 366.0 | 370.3 | |
| 1.64 | -69.00 | 1.35 | -69.00 | 15.56 | 5.85 | -52.49 | 73.33 | 0.8000 | -525.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.80 | 17.88 | 4.77 | -53.57 | 70.66 | 0.8138 | 563.0 | 437.7 | |
| 0.00 | 1.12 | 0.00 | 0.93 | 16.27 | 5.33 | -53.02 | 72.53 | 0.8061 | -323.0 | -290.3 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 17.03 | 5.03 | -53.32 | 71.65 | 0.8101 | -192.0 | -121.8 | |
| 0.95 | 5.09 | 0.81 | 4.33 | 17.62 | 4.57 | -53.78 | 71.01 | 0.8154 | 681.5 | 499.6 | |
| 0.00 | 1.90 | 0.00 | 1.55 | 13.31 | 5.95 | -52.40 | 76.13 | 0.7964 | 348.0 | 324.9 | |
| 0.00 | 1.55 | 0.00 | 1.30 | 15.74 | 5.07 | -53.28 | 73.23 | 0.8080 | -492.0 | -494.0 | |
| 0.00 | 2.24 | 0.00 | 1.89 | 15.97 | 4.82 | -53.52 | 72.98 | 0.8107 | -307.0 | -304.3 | |
| 0.00 | 4.14 | 0.00 | 3.55 | 17.23 | 4.15 | -54.20 | 71.55 | 0.8188 | 644.0 | 539.1 | |
| 0.35 | 1.12 | 0.30 | 0.98 | 18.00 | 3.48 | -54.86 | 70.73 | 0.8262 | 477.5 | 391.1 | |
| 0.00 | 1.04 | 0.00 | 0.90 | 17.78 | 3.58 | -54.77 | 70.97 | 0.8250 | 535.0 | 489.6 | |
| 2.24 | 45.56 | 1.95 | 40.13 | 16.80 | 3.58 | -54.77 | 72.16 | 0.8237 | 464.9 | 342.5 | |
| 1.81 | -83.00 | 1.58 | -83.00 | 17.22 | 3.35 | -55.00 | 71.69 | 0.8264 | 841.9 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.15 | 18.03 | 2.92 | -55.43 | 70.78 | 0.8314 | 364.0 | 260.9 | |
| 7.94 | -83.00 | 7.00 | -83.00 | 17.54 | 3.04 | -55.31 | 71.34 | 0.8297 | 501.4 | 999999 | |
| 1.98 | -83.00 | 1.75 | -83.00 | 17.14 | 3.05 | -55.30 | 71.82 | 0.8291 | 746.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
