SDO HMI 2014-11-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.18 | 0.00 | 4.42 | -22.62 | 9.48 | -48.87 | 121.38 | 0.8164 | 449.7 | 426.7 | |
|
previous
or next observation for the same group /

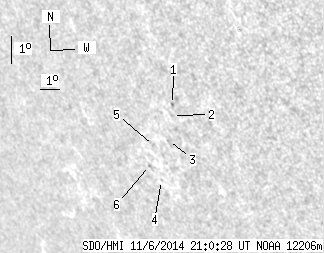

back to the solar disc SDO HMI 2014-11-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 1.29 | -21.65 | 10.39 | -47.96 | 120.67 | 0.8048 | 687.0 | 605.4 | |
| 0.00 | 1.12 | 0.00 | 0.94 | -22.02 | 10.23 | -48.12 | 121.02 | 0.8077 | 578.0 | 473.1 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -22.87 | 9.63 | -48.72 | 121.73 | 0.8163 | 314.0 | 427.3 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -24.25 | 8.57 | -49.77 | 122.82 | 0.8305 | 318.0 | 277.3 | |
| 0.00 | 1.04 | 0.00 | 0.90 | -23.08 | 8.78 | -49.57 | 121.60 | 0.8243 | 554.0 | 406.8 | |
| 0.00 | 0.95 | 0.00 | 0.84 | -23.77 | 8.22 | -50.13 | 122.13 | 0.8316 | 247.0 | 162.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
