SDO HMI 2014-11-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.02 | 17.60 | 2.17 | 12.40 | -15.79 | 17.20 | -41.15 | 116.81 | 0.7108 | -65.5 | -197.0 | |
|
previous
or next observation for the same group /

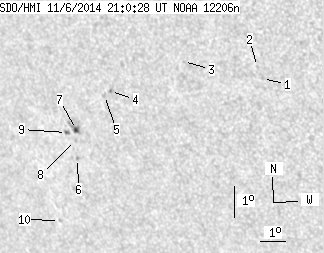

back to the solar disc SDO HMI 2014-11-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.82 | -14.13 | 23.80 | -34.55 | 118.34 | 0.6271 | 525.0 | 350.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -13.77 | 23.68 | -34.67 | 117.73 | 0.6265 | 711.0 | 597.8 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -13.72 | 20.88 | -37.47 | 115.96 | 0.6597 | 502.0 | 410.5 | |
| 0.00 | 1.21 | 0.00 | 0.84 | -14.79 | 17.77 | -40.58 | 115.75 | 0.7007 | 810.0 | 615.3 | |
| 0.00 | 1.73 | 0.00 | 1.20 | -14.92 | 17.49 | -40.86 | 115.79 | 0.7044 | 533.0 | 455.4 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -16.98 | 15.84 | -42.51 | 117.62 | 0.7317 | -661.0 | -592.9 | |
| 2.16 | 6.64 | 1.55 | 4.77 | -16.06 | 16.05 | -42.30 | 116.55 | 0.7253 | -941.2 | -727.7 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -16.41 | 15.91 | -42.44 | 116.93 | 0.7284 | -697.0 | -538.2 | |
| 0.86 | 2.33 | 0.62 | 1.68 | -16.17 | 15.60 | -42.75 | 116.47 | 0.7307 | -702.4 | -534.9 | |
| 0.00 | 1.04 | 0.00 | 0.78 | -19.02 | 14.43 | -43.92 | 119.46 | 0.7554 | -495.0 | -429.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
