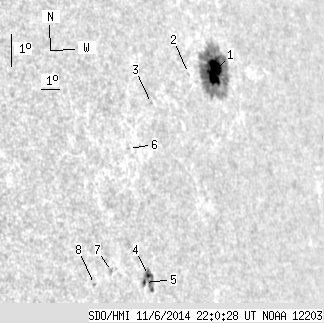

SDO HMI 2014-11-06 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.24 | 138.51 | 25.71 | 134.60 | 13.26 | 117.17 | 59.37 | 283.13 | 0.8617 | -589.6 | -241.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.56 | 117.28 | 23.43 | 116.57 | 13.97 | 117.94 | 60.14 | 283.93 | 0.8691 | -733.3 | -233.5 | |
| 0.00 | 0.52 | 0.00 | 0.49 | 13.99 | 116.37 | 58.58 | 284.09 | 0.8558 | -511.0 | -479.8 | |
| 0.00 | 0.95 | 0.00 | 0.85 | 13.21 | 113.96 | 56.16 | 283.37 | 0.8333 | -592.0 | -521.9 | |
| 1.64 | 15.36 | 1.40 | 13.08 | 8.11 | 112.39 | 54.59 | 277.26 | 0.8156 | -703.5 | -512.6 | |
| 1.04 | -4.00 | 0.88 | -4.00 | 7.92 | 112.14 | 54.34 | 277.03 | 0.8131 | -655.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.88 | 11.94 | 112.30 | 54.51 | 281.97 | 0.8165 | 580.0 | 466.1 | |
| 0.00 | 2.24 | 0.00 | 1.83 | 8.33 | 110.54 | 52.75 | 277.59 | 0.7968 | 554.0 | 439.9 | |
| 0.00 | 1.12 | 0.00 | 0.90 | 7.99 | 109.64 | 51.84 | 277.19 | 0.7871 | 605.0 | 500.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
