SDO HMI 2014-11-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 221.11 | 920.94 | 163.06 | 673.33 | 15.61 | 10.65 | -46.59 | 72.16 | 0.7358 | 1.2 | 33.7 | |
|
previous
or next observation for the same group /

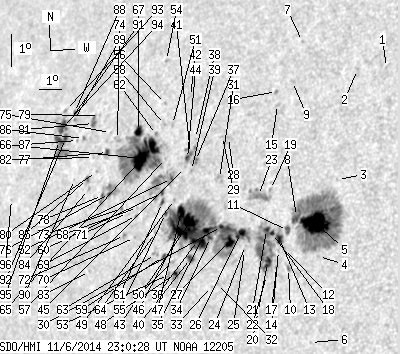

back to the solar disc SDO HMI 2014-11-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.40 | 20.04 | 17.16 | -40.08 | 64.05 | 0.6750 | -571.0 | -523.0 | |
| 0.00 | 1.47 | 0.00 | 1.00 | 19.93 | 15.99 | -41.26 | 64.68 | 0.6882 | -652.0 | -544.4 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 16.54 | 16.13 | -41.12 | 69.45 | 0.6755 | -218.0 | -248.2 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 14.18 | 15.91 | -41.33 | 72.95 | 0.6720 | -552.0 | -428.4 | |
| 38.58 | 219.22 | 25.94 | 147.28 | 15.17 | 15.56 | -41.68 | 71.60 | 0.6787 | -1121.7 | -402.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 11.59 | 16.11 | -41.14 | 76.75 | 0.6644 | -582.0 | -549.0 | |
| 0.00 | 0.95 | 0.00 | 0.68 | 20.69 | 13.35 | -43.89 | 64.60 | 0.7203 | -568.0 | -481.3 | |
| 5.26 | -5.00 | 3.59 | -5.00 | 15.35 | 14.73 | -42.52 | 71.57 | 0.6893 | -409.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.22 | 19.44 | 13.35 | -43.89 | 66.28 | 0.7164 | -580.0 | -392.2 | |
| 0.00 | 1.73 | 0.00 | 1.17 | 13.77 | 14.77 | -42.48 | 73.83 | 0.6852 | -689.0 | -642.1 | |
| 1.90 | 4.06 | 1.30 | 2.77 | 14.91 | 14.46 | -42.79 | 72.27 | 0.6915 | -673.8 | -465.2 | |
| 0.00 | 1.55 | 0.00 | 1.06 | 14.37 | 14.46 | -42.78 | 73.05 | 0.6902 | -686.0 | -668.2 | |
| 4.40 | 79.58 | 3.02 | 54.99 | 14.66 | 14.18 | -43.06 | 72.70 | 0.6942 | -813.3 | -62.6 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 14.29 | 14.23 | -43.02 | 73.21 | 0.6929 | -614.0 | -531.6 | |
| 0.00 | 1.90 | 0.00 | 1.35 | 18.71 | 12.94 | -44.31 | 67.41 | 0.7189 | -240.0 | -206.2 | |
| 0.00 | 1.90 | 0.00 | 1.35 | 19.11 | 12.76 | -44.48 | 66.93 | 0.7220 | -496.0 | -386.0 | |
| 0.00 | 1.12 | 0.00 | 0.77 | 13.78 | 14.26 | -42.98 | 73.93 | 0.6914 | -693.0 | -623.3 | |
| 1.55 | -13.00 | 1.07 | -13.00 | 14.80 | 13.85 | -43.39 | 72.59 | 0.6985 | -478.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.84 | 16.12 | 13.42 | -43.83 | 70.84 | 0.7066 | -502.0 | -386.4 | |
| 5.26 | -13.00 | 3.62 | -13.00 | 13.91 | 13.85 | -43.39 | 73.84 | 0.6966 | -842.9 | 999999 | |
| 2.33 | -13.00 | 1.62 | -13.00 | 14.90 | 13.57 | -43.67 | 72.50 | 0.7021 | -348.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.83 | 13.52 | 13.90 | -43.34 | 74.38 | 0.6953 | -575.0 | -531.6 | |
| 0.00 | 16.57 | 0.00 | 11.64 | 15.91 | 12.96 | -44.29 | 71.24 | 0.7115 | 733.0 | 402.7 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 14.38 | 12.80 | -44.44 | 73.41 | 0.7101 | -317.0 | -254.9 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 14.23 | 12.79 | -44.45 | 73.62 | 0.7099 | -225.0 | -262.6 | |
| 5.96 | 247.70 | 4.20 | 180.15 | 14.74 | 12.49 | -44.75 | 72.98 | 0.7144 | 717.9 | 176.7 | |
| 6.82 | -26.00 | 4.84 | -26.00 | 14.47 | 12.08 | -45.16 | 73.43 | 0.7187 | -776.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.50 | 17.61 | 11.12 | -46.13 | 69.40 | 0.7364 | 725.0 | 655.9 | |
| 0.00 | 0.95 | 0.00 | 0.70 | 17.63 | 10.84 | -46.41 | 69.45 | 0.7395 | 667.0 | 605.9 | |
| 1.81 | -26.00 | 1.30 | -26.00 | 14.91 | 11.62 | -45.63 | 72.94 | 0.7249 | 896.8 | 999999 | |
| 0.00 | 5.61 | 0.00 | 4.07 | 16.35 | 11.11 | -46.13 | 71.09 | 0.7336 | 473.0 | 573.3 | |
| 0.00 | 0.86 | 0.00 | 0.61 | 13.19 | 11.88 | -45.37 | 75.25 | 0.7188 | -446.0 | -440.3 | |
| 0.00 | 1.04 | 0.00 | 0.74 | 13.09 | 11.64 | -45.60 | 75.43 | 0.7214 | -350.0 | -292.5 | |
| 1.55 | -26.00 | 1.12 | -26.00 | 14.56 | 11.22 | -46.02 | 73.50 | 0.7287 | -344.2 | 999999 | |
| 3.54 | -26.00 | 2.56 | -26.00 | 14.76 | 10.99 | -46.25 | 73.27 | 0.7318 | 1065.4 | 999999 | |
| 14.93 | -26.00 | 10.86 | -26.00 | 14.44 | 10.68 | -46.57 | 73.76 | 0.7348 | -268.2 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.63 | 16.85 | 9.86 | -47.38 | 70.72 | 0.7485 | 943.0 | 832.1 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 17.51 | 9.64 | -47.61 | 69.90 | 0.7523 | 600.0 | 490.3 | |
| 0.00 | 1.38 | 0.00 | 1.03 | 16.54 | 9.78 | -47.46 | 71.15 | 0.7487 | 614.0 | 506.1 | |
| 3.19 | 4.83 | 2.33 | 3.52 | 13.89 | 10.51 | -46.73 | 74.54 | 0.7358 | -703.6 | -570.1 | |
| 0.52 | 10.36 | 0.39 | 7.75 | 17.05 | 9.56 | -47.68 | 70.53 | 0.7521 | 826.5 | 685.4 | |
| 0.00 | 1.73 | 0.00 | 1.32 | 18.78 | 8.94 | -48.30 | 68.42 | 0.7625 | 637.0 | 548.0 | |
| 20.37 | -26.00 | 14.97 | -26.00 | 14.96 | 10.17 | -47.08 | 73.16 | 0.7415 | 1154.6 | 999999 | |
| 1.73 | -41.00 | 1.29 | -41.00 | 16.89 | 9.48 | -47.77 | 70.75 | 0.7527 | 881.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 16.61 | 9.48 | -47.77 | 71.12 | 0.7522 | 513.0 | 482.9 | |
| 18.38 | -26.00 | 13.60 | -26.00 | 14.71 | 9.83 | -47.41 | 73.57 | 0.7448 | -182.5 | 999999 | |
| 10.79 | -26.00 | 8.01 | -26.00 | 15.19 | 9.69 | -47.55 | 72.96 | 0.7472 | 874.3 | 999999 | |
| 2.07 | 7.34 | 1.52 | 5.39 | 13.40 | 9.96 | -47.28 | 75.29 | 0.7413 | -645.8 | -428.6 | |
| 0.00 | 0.86 | 0.00 | 0.65 | 15.63 | 9.28 | -47.96 | 72.46 | 0.7524 | 287.0 | 316.0 | |
| 0.00 | 1.38 | 0.00 | 1.02 | 13.76 | 9.73 | -47.51 | 74.85 | 0.7444 | -713.0 | -629.2 | |
| 0.00 | 1.55 | 0.00 | 1.19 | 17.89 | 8.42 | -48.82 | 69.69 | 0.7661 | 533.0 | 425.3 | |
| 1.12 | 36.85 | 0.85 | 28.04 | 16.25 | 8.94 | -48.30 | 71.70 | 0.7573 | 782.3 | 189.8 | |
| 0.00 | 2.42 | 0.00 | 1.79 | 13.36 | 9.65 | -47.59 | 75.40 | 0.7447 | -520.0 | -391.0 | |
| 0.00 | 1.47 | 0.00 | 1.16 | 19.82 | 7.36 | -49.88 | 67.48 | 0.7811 | 610.0 | 496.9 | |
| 0.86 | -26.00 | 0.65 | -26.00 | 15.18 | 9.00 | -48.24 | 73.09 | 0.7548 | -309.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.94 | 18.51 | 7.85 | -49.39 | 69.03 | 0.7733 | 489.0 | 379.5 | |
| 0.00 | 0.78 | 0.00 | 0.59 | 16.84 | 8.46 | -48.78 | 71.03 | 0.7636 | 558.0 | 546.8 | |
| 0.00 | 1.04 | 0.00 | 0.80 | 17.87 | 8.05 | -49.20 | 69.80 | 0.7700 | 660.0 | 543.3 | |
| 1.21 | 3.28 | 0.90 | 2.44 | 13.89 | 9.28 | -47.96 | 74.75 | 0.7496 | -640.4 | -501.1 | |
| 1.38 | -52.00 | 1.05 | -52.00 | 15.81 | 8.67 | -48.58 | 72.34 | 0.7595 | -424.8 | 999999 | |
| 0.95 | -52.00 | 0.72 | -52.00 | 15.51 | 8.76 | -48.48 | 72.71 | 0.7579 | -394.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 1.47 | 17.55 | 7.78 | -49.46 | 70.27 | 0.7721 | 624.0 | 452.5 | |
| 0.00 | 2.33 | 0.00 | 1.75 | 13.93 | 8.90 | -48.34 | 74.76 | 0.7539 | -386.0 | -248.9 | |
| 0.00 | 1.04 | 0.00 | 0.78 | 14.59 | 8.71 | -48.53 | 73.92 | 0.7570 | -187.0 | -127.2 | |
| 13.12 | 144.05 | 10.18 | 112.90 | 17.18 | 7.72 | -49.52 | 70.76 | 0.7720 | 923.8 | 246.0 | |
| 25.55 | -65.00 | 19.96 | -65.00 | 16.79 | 7.33 | -49.91 | 71.33 | 0.7754 | -238.5 | 999999 | |
| 5.61 | -65.00 | 4.43 | -65.00 | 17.60 | 6.89 | -50.36 | 70.39 | 0.7815 | 618.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.67 | 15.30 | 7.65 | -49.60 | 73.18 | 0.7696 | -579.0 | -429.3 | |
| 0.00 | 1.29 | 0.00 | 1.00 | 15.06 | 7.68 | -49.57 | 73.49 | 0.7689 | -412.0 | -283.9 | |
| 0.00 | 0.86 | 0.00 | 0.66 | 14.39 | 7.79 | -49.46 | 74.34 | 0.7668 | 670.0 | 539.8 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 15.13 | 7.22 | -50.02 | 73.48 | 0.7739 | -322.0 | -383.0 | |
| 0.00 | 2.07 | 0.00 | 1.61 | 14.43 | 7.30 | -49.95 | 74.36 | 0.7721 | 822.0 | 691.4 | |
| 0.00 | 1.12 | 0.00 | 0.88 | 15.24 | 6.90 | -50.35 | 73.40 | 0.7775 | -372.0 | -260.9 | |
| 0.00 | 3.71 | 0.00 | 2.99 | 17.31 | 5.96 | -51.29 | 70.94 | 0.7904 | 542.0 | 416.3 | |
| 0.00 | 0.69 | 0.00 | 0.56 | 17.50 | 5.53 | -51.71 | 70.78 | 0.7951 | 454.0 | 367.6 | |
| 1.12 | 19.94 | 0.89 | 15.91 | 15.66 | 6.17 | -51.08 | 72.98 | 0.7857 | 603.2 | 145.8 | |
| 1.73 | 4.14 | 1.40 | 3.35 | 16.89 | 5.62 | -51.63 | 71.53 | 0.7932 | 695.6 | 489.4 | |
| 0.86 | -76.00 | 0.69 | -76.00 | 15.58 | 5.85 | -51.40 | 73.13 | 0.7889 | -481.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.79 | 17.99 | 4.77 | -52.48 | 70.32 | 0.8034 | 499.0 | 392.5 | |
| 0.00 | 1.04 | 0.00 | 0.84 | 16.29 | 5.29 | -51.95 | 72.33 | 0.7956 | -419.0 | -275.2 | |
| 1.73 | 5.26 | 1.43 | 4.37 | 17.73 | 4.57 | -52.68 | 70.67 | 0.8050 | 654.5 | 395.4 | |
| 0.00 | 0.95 | 0.00 | 0.78 | 16.70 | 4.98 | -52.26 | 71.87 | 0.7993 | -327.0 | -276.1 | |
| 0.00 | 0.78 | 0.00 | 0.62 | 13.27 | 5.95 | -51.30 | 76.04 | 0.7849 | 467.0 | 442.2 | |
| 0.00 | 1.55 | 0.00 | 1.27 | 15.73 | 5.09 | -52.15 | 73.07 | 0.7968 | -544.0 | -395.3 | |
| 1.21 | 3.37 | 0.99 | 2.76 | 16.06 | 4.92 | -52.32 | 72.68 | 0.7989 | -488.5 | -327.2 | |
| 0.00 | 1.55 | 0.00 | 1.30 | 17.25 | 4.25 | -53.00 | 71.32 | 0.8073 | 695.0 | 634.7 | |
| 0.00 | 0.78 | 0.00 | 0.65 | 17.18 | 3.96 | -53.28 | 71.46 | 0.8100 | 455.0 | 452.1 | |
| 0.69 | 1.81 | 0.59 | 1.54 | 18.01 | 3.45 | -53.80 | 70.52 | 0.8162 | 439.4 | 327.8 | |
| 0.00 | 1.21 | 0.00 | 1.03 | 17.80 | 3.54 | -53.70 | 70.76 | 0.8150 | 591.0 | 514.2 | |
| 0.00 | 0.26 | 0.00 | 0.22 | 15.99 | 4.28 | -52.96 | 72.86 | 0.8053 | -185.0 | -206.7 | |
| 0.00 | 0.95 | 0.00 | 0.81 | 17.76 | 3.29 | -53.95 | 70.86 | 0.8173 | 436.0 | 344.2 | |
| 1.55 | 36.51 | 1.32 | 31.27 | 17.20 | 3.32 | -53.92 | 71.53 | 0.8162 | 823.5 | 397.4 | |
| 0.00 | 1.38 | 0.00 | 1.19 | 18.05 | 2.95 | -54.30 | 70.56 | 0.8210 | 351.0 | 254.1 | |
| 6.73 | -92.00 | 5.79 | -92.00 | 17.53 | 3.02 | -54.22 | 71.18 | 0.8195 | 510.4 | 999999 | |
| 4.75 | -92.00 | 4.07 | -92.00 | 17.13 | 3.03 | -54.21 | 71.66 | 0.8189 | 711.2 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.69 | 15.22 | 1.21 | -56.03 | 74.21 | 0.8338 | 472.0 | 437.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
