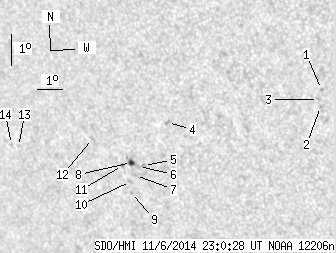

SDO HMI 2014-11-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.33 | 20.63 | 1.64 | 14.31 | -15.54 | 17.07 | -40.18 | 117.05 | 0.6984 | -245.3 | -149.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.70 | -13.48 | 23.91 | -33.33 | 118.18 | 0.6085 | 769.0 | 656.7 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -14.01 | 23.79 | -33.46 | 118.89 | 0.6132 | 753.0 | 536.1 | |
| 0.00 | 1.99 | 0.00 | 1.24 | -13.79 | 23.75 | -33.49 | 118.54 | 0.6123 | 636.0 | 423.3 | |
| 0.00 | 2.07 | 0.00 | 1.41 | -14.75 | 17.79 | -39.45 | 116.28 | 0.6876 | 756.0 | 603.0 | |
| 0.00 | 1.29 | 0.00 | 0.91 | -16.15 | 16.49 | -40.75 | 117.45 | 0.7089 | -696.0 | -562.6 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -16.20 | 16.28 | -40.97 | 117.39 | 0.7115 | -657.0 | -570.7 | |
| 0.00 | 0.52 | 0.00 | 0.37 | -16.49 | 16.08 | -41.17 | 117.67 | 0.7150 | -680.0 | -612.7 | |
| 2.33 | 3.62 | 1.64 | 2.56 | -16.08 | 16.02 | -41.23 | 117.11 | 0.7138 | -904.1 | -769.7 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -17.04 | 15.76 | -41.48 | 118.21 | 0.7210 | -546.0 | -505.1 | |
| 0.00 | 1.99 | 0.00 | 1.41 | -16.69 | 15.82 | -41.43 | 117.79 | 0.7188 | -613.0 | -516.7 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -16.19 | 15.62 | -41.63 | 117.05 | 0.7186 | -635.0 | -527.3 | |
| 0.00 | 2.16 | 0.00 | 1.55 | -15.39 | 14.57 | -42.67 | 115.50 | 0.7264 | -99.0 | -158.5 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -15.80 | 11.25 | -45.99 | 114.53 | 0.7631 | -559.0 | -466.0 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -15.75 | 10.95 | -46.29 | 114.35 | 0.7659 | -538.0 | -446.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
