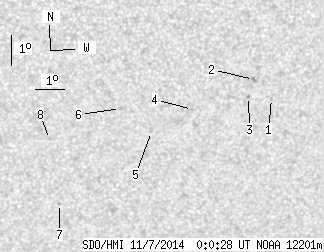

SDO HMI 2014-11-07 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.98 | 0.00 | 5.36 | -20.93 | 80.26 | 23.57 | 222.02 | 0.5602 | 676.5 | 569.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.42 | -20.47 | 83.33 | 26.64 | 226.10 | 0.5852 | 451.0 | 465.9 | |
| 0.00 | 2.07 | 0.00 | 1.25 | -19.83 | 82.58 | 25.89 | 226.16 | 0.5716 | 834.0 | 673.8 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -20.38 | 82.50 | 25.81 | 225.35 | 0.5759 | 681.0 | 592.1 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -20.74 | 80.60 | 23.91 | 222.76 | 0.5604 | 669.0 | 453.7 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -21.42 | 79.29 | 22.60 | 220.34 | 0.5548 | 720.0 | 489.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -20.64 | 78.10 | 21.41 | 219.86 | 0.5352 | 616.0 | 543.2 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -23.73 | 76.48 | 19.79 | 214.06 | 0.5556 | 761.0 | 622.4 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -21.60 | 75.83 | 19.14 | 215.63 | 0.5253 | 680.0 | 592.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
