SDO HMI 2014-11-07 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 217.88 | 926.40 | 158.68 | 671.13 | 15.58 | 10.61 | -46.08 | 72.09 | 0.7299 | -13.4 | 24.0 | |
|
previous
or next observation for the same group /

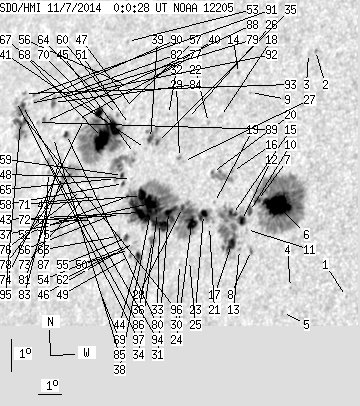

back to the solar disc SDO HMI 2014-11-07 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.49 | 12.53 | 18.82 | -37.87 | 74.55 | 0.6240 | -611.0 | -495.1 | |
| 0.00 | 1.47 | 0.00 | 0.99 | 19.94 | 15.81 | -40.88 | 64.51 | 0.6840 | -578.0 | -506.8 | |
| 0.00 | 0.69 | 0.00 | 0.47 | 19.83 | 15.55 | -41.15 | 64.76 | 0.6866 | -492.0 | -384.2 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 12.71 | 16.59 | -40.10 | 74.83 | 0.6533 | -690.0 | -563.3 | |
| 0.00 | 1.90 | 0.00 | 1.24 | 11.95 | 16.41 | -40.28 | 76.03 | 0.6541 | -547.0 | -421.7 | |
| 34.87 | 219.93 | 23.27 | 146.58 | 15.16 | 15.55 | -41.15 | 71.47 | 0.6722 | -1123.1 | -421.4 | |
| 2.85 | -6.00 | 1.93 | -6.00 | 15.27 | 14.69 | -42.00 | 71.54 | 0.6829 | -514.9 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.57 | 13.76 | 14.80 | -41.90 | 73.71 | 0.6781 | -735.0 | -626.7 | |
| 0.00 | 0.95 | 0.00 | 0.66 | 18.54 | 13.48 | -43.21 | 67.29 | 0.7060 | -565.0 | -414.5 | |
| 2.24 | 4.32 | 1.52 | 2.93 | 14.93 | 14.44 | -42.25 | 72.10 | 0.6850 | -608.2 | -375.1 | |
| 0.00 | 1.64 | 0.00 | 1.11 | 14.38 | 14.45 | -42.24 | 72.89 | 0.6837 | -847.0 | -604.8 | |
| 4.75 | 76.99 | 3.23 | 52.67 | 14.64 | 14.18 | -42.51 | 72.58 | 0.6876 | -766.8 | -91.9 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 13.77 | 14.30 | -42.40 | 73.81 | 0.6842 | -745.0 | -644.9 | |
| 0.00 | 1.29 | 0.00 | 0.92 | 19.10 | 12.78 | -43.91 | 66.76 | 0.7156 | -466.0 | -420.4 | |
| 4.40 | -12.00 | 3.02 | -12.00 | 14.81 | 13.76 | -42.93 | 72.45 | 0.6930 | -271.5 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.13 | 16.11 | 13.43 | -43.27 | 70.70 | 0.7001 | -404.0 | -371.8 | |
| 7.25 | -12.00 | 4.94 | -12.00 | 13.90 | 13.93 | -42.76 | 73.70 | 0.6890 | -807.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.22 | 17.75 | 12.43 | -44.26 | 68.70 | 0.7158 | -515.0 | -408.5 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 15.14 | 12.91 | -43.78 | 72.19 | 0.7038 | -239.0 | -138.2 | |
| 0.35 | 16.05 | 0.24 | 11.18 | 16.04 | 12.59 | -44.11 | 71.02 | 0.7097 | 762.0 | 429.8 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 14.41 | 12.88 | -43.81 | 73.23 | 0.7026 | -232.0 | -206.7 | |
| 0.00 | 1.38 | 0.00 | 0.98 | 17.55 | 11.97 | -44.73 | 69.11 | 0.7205 | -187.0 | -126.9 | |
| 5.70 | 258.69 | 3.98 | 186.30 | 14.76 | 12.54 | -44.15 | 72.82 | 0.7074 | 743.2 | 188.4 | |
| 8.98 | -23.00 | 6.31 | -23.00 | 14.49 | 12.09 | -44.60 | 73.28 | 0.7122 | -676.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.54 | 13.35 | 12.28 | -44.41 | 74.84 | 0.7078 | -126.0 | -146.2 | |
| 0.00 | 3.02 | 0.00 | 2.19 | 17.63 | 11.01 | -45.69 | 69.26 | 0.7315 | 617.0 | 522.8 | |
| 0.00 | 0.86 | 0.00 | 0.62 | 16.32 | 11.24 | -45.46 | 70.97 | 0.7259 | 719.0 | 591.6 | |
| 1.90 | -23.00 | 1.35 | -23.00 | 14.93 | 11.58 | -45.11 | 72.79 | 0.7189 | 856.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.31 | 16.43 | 11.03 | -45.67 | 70.87 | 0.7285 | 880.0 | 744.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 13.21 | 11.88 | -44.81 | 75.11 | 0.7123 | -596.0 | -508.9 | |
| 3.45 | -23.00 | 2.48 | -23.00 | 14.78 | 11.01 | -45.68 | 73.12 | 0.7253 | 1126.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.89 | 17.71 | 10.12 | -46.57 | 69.38 | 0.7415 | 147.0 | 182.6 | |
| 14.59 | -23.00 | 10.50 | -23.00 | 14.40 | 10.71 | -45.98 | 73.70 | 0.7280 | -437.1 | 999999 | |
| 5.96 | -23.00 | 4.30 | -23.00 | 14.73 | 10.54 | -46.16 | 73.29 | 0.7306 | 1001.3 | 999999 | |
| 1.04 | 16.14 | 0.76 | 11.94 | 16.84 | 9.91 | -46.78 | 70.59 | 0.7419 | 942.2 | 708.8 | |
| 0.00 | 5.70 | 0.00 | 4.11 | 13.88 | 10.54 | -46.15 | 74.45 | 0.7291 | -731.0 | -637.3 | |
| 18.21 | -23.00 | 13.26 | -23.00 | 14.98 | 10.15 | -46.54 | 73.02 | 0.7355 | 1106.8 | 999999 | |
| 2.33 | -23.00 | 1.69 | -23.00 | 14.74 | 10.22 | -46.47 | 73.33 | 0.7343 | 1249.0 | 999999 | |
| 2.85 | -35.00 | 2.11 | -35.00 | 16.94 | 9.55 | -47.14 | 70.53 | 0.7460 | 886.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 1.30 | 18.73 | 8.88 | -47.81 | 68.35 | 0.7573 | 617.0 | 620.9 | |
| 0.00 | 0.78 | 0.00 | 0.58 | 16.63 | 9.43 | -47.27 | 70.98 | 0.7468 | 642.0 | 530.4 | |
| 7.68 | -23.00 | 5.65 | -23.00 | 15.21 | 9.68 | -47.01 | 72.82 | 0.7412 | 948.5 | 999999 | |
| 22.61 | -23.00 | 16.57 | -23.00 | 14.69 | 9.78 | -46.91 | 73.49 | 0.7391 | -274.2 | 999999 | |
| 2.85 | 5.18 | 2.07 | 3.76 | 13.37 | 10.04 | -46.65 | 75.23 | 0.7340 | -632.0 | -490.2 | |
| 0.00 | 1.29 | 0.00 | 0.97 | 16.46 | 8.97 | -47.72 | 71.31 | 0.7514 | 778.0 | 665.3 | |
| 0.00 | 1.21 | 0.00 | 0.88 | 13.78 | 9.76 | -46.93 | 74.72 | 0.7379 | -698.0 | -558.6 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 17.82 | 8.46 | -48.23 | 69.64 | 0.7597 | 561.0 | 542.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | 15.70 | 9.08 | -47.62 | 72.29 | 0.7488 | 490.0 | 356.9 | |
| 0.00 | 1.38 | 0.00 | 1.01 | 13.38 | 9.68 | -47.01 | 75.27 | 0.7381 | -577.0 | -481.2 | |
| 0.00 | 1.99 | 0.00 | 1.46 | 13.56 | 9.59 | -47.10 | 75.04 | 0.7394 | -569.0 | -478.0 | |
| 0.00 | 1.99 | 0.00 | 1.50 | 17.32 | 8.45 | -48.24 | 70.29 | 0.7588 | 204.0 | 322.3 | |
| 0.86 | -23.00 | 0.64 | -23.00 | 15.15 | 9.06 | -47.63 | 73.02 | 0.7480 | -344.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.94 | 19.85 | 7.38 | -49.31 | 67.30 | 0.7753 | 558.0 | 463.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | 13.67 | 9.47 | -47.22 | 74.91 | 0.7410 | -479.0 | -466.6 | |
| 1.90 | 3.45 | 1.40 | 2.54 | 13.91 | 9.36 | -47.33 | 74.61 | 0.7426 | -669.7 | -498.3 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 18.50 | 7.88 | -48.82 | 68.90 | 0.7673 | 471.0 | 407.3 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 17.86 | 8.07 | -48.62 | 69.68 | 0.7639 | 646.0 | 559.7 | |
| 0.95 | 1.99 | 0.71 | 1.49 | 15.53 | 8.76 | -47.93 | 72.57 | 0.7520 | -469.4 | -394.3 | |
| 1.21 | 26.33 | 0.91 | 19.85 | 15.77 | 8.64 | -48.05 | 72.28 | 0.7537 | -381.7 | 276.2 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 17.70 | 7.94 | -48.75 | 69.92 | 0.7650 | 496.0 | 513.7 | |
| 0.00 | 0.60 | 0.00 | 0.45 | 14.56 | 8.91 | -47.78 | 73.83 | 0.7487 | -171.0 | -115.9 | |
| 0.00 | 0.35 | 0.00 | 0.25 | 13.51 | 9.15 | -47.54 | 75.19 | 0.7443 | -353.0 | -341.5 | |
| 0.00 | 3.80 | 0.00 | 2.82 | 13.92 | 8.95 | -47.74 | 74.67 | 0.7472 | -359.0 | -235.5 | |
| 0.00 | 1.55 | 0.00 | 1.19 | 17.60 | 7.78 | -48.91 | 70.08 | 0.7664 | 589.0 | 475.3 | |
| 0.00 | 2.16 | 0.00 | 1.63 | 15.66 | 8.35 | -48.35 | 72.48 | 0.7567 | -365.0 | -297.8 | |
| 0.00 | 1.04 | 0.00 | 0.77 | 14.61 | 8.66 | -48.03 | 73.81 | 0.7515 | -99.0 | -60.9 | |
| 9.24 | 141.56 | 7.08 | 109.73 | 17.17 | 7.80 | -48.90 | 70.63 | 0.7655 | 1002.7 | 248.5 | |
| 26.59 | -67.00 | 20.54 | -67.00 | 16.87 | 7.33 | -49.36 | 71.11 | 0.7698 | -158.4 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.32 | 12.21 | 8.61 | -48.08 | 77.00 | 0.7487 | -465.0 | -465.2 | |
| 5.44 | -67.00 | 4.25 | -67.00 | 17.62 | 6.91 | -49.78 | 70.24 | 0.7756 | 621.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.72 | 15.08 | 7.68 | -49.01 | 73.36 | 0.7630 | -486.0 | -339.4 | |
| 0.00 | 0.52 | 0.00 | 0.39 | 14.35 | 7.72 | -48.98 | 74.31 | 0.7615 | 571.0 | 579.2 | |
| 0.00 | 0.69 | 0.00 | 0.53 | 15.05 | 7.12 | -49.57 | 73.50 | 0.7690 | -390.0 | -329.8 | |
| 0.00 | 0.86 | 0.00 | 0.68 | 17.40 | 6.26 | -50.43 | 70.65 | 0.7819 | 505.0 | 447.2 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 14.39 | 7.23 | -49.46 | 74.34 | 0.7668 | 760.0 | 760.0 | |
| 0.00 | 0.60 | 0.00 | 0.47 | 15.23 | 6.88 | -49.81 | 73.32 | 0.7718 | -344.0 | -269.6 | |
| 0.00 | 1.55 | 0.00 | 1.24 | 17.36 | 5.93 | -50.76 | 70.77 | 0.7852 | 575.0 | 456.8 | |
| 1.21 | 22.01 | 0.95 | 17.36 | 15.65 | 6.16 | -50.54 | 72.90 | 0.7801 | 611.9 | 149.8 | |
| 0.00 | 1.12 | 0.00 | 0.91 | 18.07 | 5.25 | -51.44 | 70.02 | 0.7933 | 289.0 | 362.0 | |
| 1.90 | 3.88 | 1.52 | 3.11 | 16.88 | 5.57 | -51.12 | 71.45 | 0.7881 | 549.3 | 396.8 | |
| 0.86 | -78.00 | 0.68 | -78.00 | 15.60 | 5.83 | -50.86 | 73.01 | 0.7834 | -523.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.13 | 18.01 | 4.77 | -51.92 | 70.18 | 0.7980 | 466.0 | 373.4 | |
| 0.00 | 0.52 | 0.00 | 0.41 | 16.14 | 5.49 | -51.20 | 72.39 | 0.7877 | -524.0 | -485.2 | |
| 2.33 | 4.92 | 1.91 | 4.04 | 17.81 | 4.54 | -52.15 | 70.47 | 0.7999 | 563.4 | 352.9 | |
| 0.00 | 1.29 | 0.00 | 1.05 | 16.76 | 4.96 | -51.73 | 71.71 | 0.7940 | -364.0 | -270.6 | |
| 0.00 | 2.33 | 0.00 | 1.88 | 16.02 | 4.99 | -51.70 | 72.63 | 0.7927 | -613.0 | -468.5 | |
| 0.00 | 1.29 | 0.00 | 1.04 | 15.69 | 5.11 | -51.59 | 73.02 | 0.7910 | -524.0 | -475.3 | |
| 0.00 | 4.66 | 0.00 | 3.83 | 17.22 | 4.38 | -52.32 | 71.24 | 0.8006 | 627.0 | 551.9 | |
| 0.00 | 1.21 | 0.00 | 1.00 | 17.17 | 3.99 | -52.71 | 71.37 | 0.8044 | 556.0 | 476.5 | |
| 0.00 | 2.16 | 0.00 | 1.81 | 17.80 | 3.62 | -53.07 | 70.65 | 0.8089 | 547.0 | 380.2 | |
| 0.35 | 1.29 | 0.29 | 1.09 | 18.00 | 3.42 | -53.27 | 70.44 | 0.8111 | 427.8 | 386.7 | |
| 0.00 | 0.78 | 0.00 | 0.66 | 17.72 | 3.34 | -53.35 | 70.80 | 0.8115 | 497.0 | 479.8 | |
| 0.00 | 1.55 | 0.00 | 1.32 | 18.01 | 2.95 | -53.75 | 70.51 | 0.8157 | 292.0 | 213.7 | |
| 1.81 | 38.67 | 1.54 | 32.76 | 17.64 | 3.00 | -53.69 | 70.95 | 0.8146 | 479.0 | 387.5 | |
| 6.47 | -94.00 | 5.47 | -94.00 | 17.12 | 3.12 | -53.58 | 71.56 | 0.8128 | 728.3 | 999999 | |
| 1.90 | -94.00 | 1.61 | -94.00 | 17.43 | 2.99 | -53.70 | 71.22 | 0.8144 | 594.1 | 999999 | |
| 0.00 | 2.85 | 0.00 | 2.44 | 17.75 | 2.64 | -54.06 | 70.88 | 0.8183 | -250.0 | -236.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
