SDO HMI 2014-11-07 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.68 | 18.47 | 1.87 | 12.89 | -16.16 | 16.20 | -40.50 | 117.63 | 0.7056 | -437.5 | -415.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

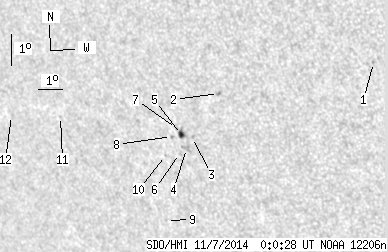

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.64 | -13.53 | 23.94 | -32.76 | 118.65 | 0.6017 | 740.0 | 650.4 | |
| 0.00 | 1.47 | 0.00 | 0.99 | -14.73 | 17.84 | -38.85 | 116.58 | 0.6807 | 714.0 | 623.9 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -16.17 | 16.47 | -40.23 | 117.75 | 0.7032 | -726.0 | -605.1 | |
| 0.00 | 4.83 | 0.00 | 3.38 | -16.53 | 16.13 | -40.56 | 118.04 | 0.7087 | -652.0 | -633.9 | |
| 2.68 | 5.09 | 1.87 | 3.56 | -16.10 | 16.04 | -40.66 | 117.42 | 0.7076 | -933.6 | -722.3 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -16.71 | 15.80 | -40.90 | 118.09 | 0.7131 | -617.0 | -541.2 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -15.91 | 15.88 | -40.82 | 117.10 | 0.7084 | -630.0 | -524.4 | |
| 0.00 | 1.21 | 0.00 | 0.85 | -16.18 | 15.60 | -41.09 | 117.30 | 0.7127 | -673.0 | -546.7 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -18.89 | 14.63 | -42.07 | 120.23 | 0.7361 | -578.0 | -460.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -16.80 | 15.19 | -41.50 | 117.89 | 0.7200 | -478.0 | -415.6 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -15.76 | 10.98 | -45.71 | 114.60 | 0.7601 | -470.0 | -474.7 | |
| 0.00 | 0.43 | 0.00 | 0.34 | -15.84 | 8.73 | -47.96 | 113.79 | 0.7831 | -515.0 | -510.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
