SDO HMI 2014-11-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.12 | 0.00 | 7.80 | -21.23 | 77.97 | 21.82 | 219.09 | 0.5573 | 418.6 | 471.0 | |
|
previous
or next observation for the same group /

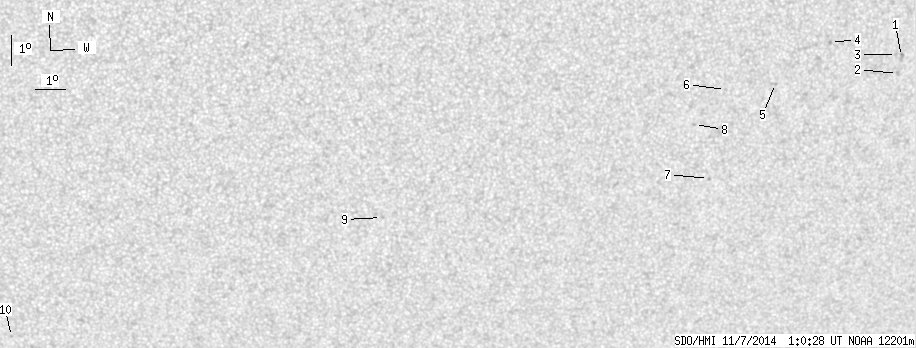

back to the solar disc SDO HMI 2014-11-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.54 | 0.00 | 2.14 | -19.88 | 82.53 | 26.39 | 226.63 | 0.5772 | 801.0 | 681.9 | |
| 0.00 | 1.55 | 0.00 | 0.94 | -20.43 | 82.49 | 26.34 | 225.85 | 0.5818 | 767.0 | 618.1 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -19.81 | 82.34 | 26.20 | 226.53 | 0.5745 | 609.0 | 444.8 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -19.35 | 79.96 | 23.82 | 224.52 | 0.5456 | 738.0 | 539.4 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -20.63 | 78.27 | 22.13 | 220.78 | 0.5419 | 527.0 | 500.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -20.78 | 76.58 | 20.44 | 218.42 | 0.5276 | 671.0 | 554.6 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -23.72 | 76.45 | 20.31 | 214.75 | 0.5596 | 644.0 | 673.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -21.91 | 75.69 | 19.55 | 215.83 | 0.5324 | 685.0 | 604.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -24.82 | 65.53 | 9.39 | 197.21 | 0.5024 | -561.0 | -441.9 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -28.87 | 53.27 | -2.88 | 175.34 | 0.5434 | -695.0 | -563.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
