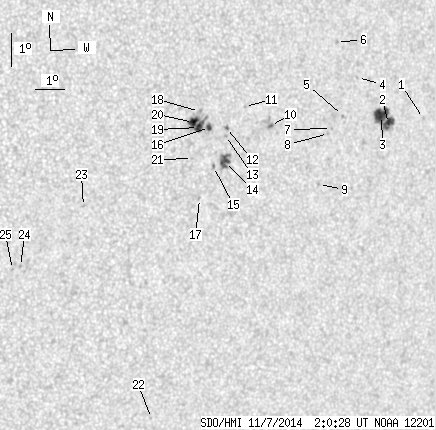

SDO HMI 2014-11-07 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.48 | 92.13 | 23.65 | 54.66 | -5.04 | 87.72 | 32.13 | 254.69 | 0.5508 | 46.2 | -61.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.49 | -4.75 | 92.98 | 37.39 | 257.45 | 0.6222 | 380.0 | 330.6 | |
| 7.17 | 30.13 | 4.45 | 18.66 | -4.85 | 91.68 | 36.09 | 256.84 | 0.6050 | 733.0 | 560.4 | |
| 13.47 | -2.00 | 8.32 | -2.00 | -4.59 | 91.41 | 35.82 | 257.15 | 0.6006 | 920.6 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -3.42 | 90.47 | 34.88 | 258.77 | 0.5842 | 725.0 | 541.7 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -4.54 | 89.98 | 34.39 | 256.70 | 0.5808 | 644.0 | 578.2 | |
| 0.00 | 1.38 | 0.00 | 0.83 | -2.34 | 89.68 | 34.09 | 260.35 | 0.5702 | 577.0 | 504.4 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -4.91 | 89.60 | 34.01 | 255.92 | 0.5768 | 696.0 | 573.0 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -5.06 | 89.50 | 33.91 | 255.63 | 0.5759 | 889.0 | 715.5 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -6.59 | 89.25 | 33.66 | 252.95 | 0.5781 | 615.0 | 465.0 | |
| 0.52 | 6.39 | 0.31 | 3.77 | -4.74 | 87.42 | 31.83 | 255.27 | 0.5456 | 822.5 | 525.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -4.14 | 86.49 | 30.89 | 255.93 | 0.5301 | -338.0 | -343.7 | |
| 0.35 | 1.64 | 0.20 | 0.95 | -4.75 | 85.89 | 30.30 | 254.53 | 0.5238 | -739.8 | -616.1 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -4.99 | 85.87 | 30.27 | 254.07 | 0.5244 | -716.0 | -602.4 | |
| 6.22 | 13.90 | 3.62 | 8.09 | -5.77 | 85.87 | 30.28 | 252.64 | 0.5278 | -867.6 | -551.1 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -5.91 | 85.50 | 29.91 | 252.18 | 0.5231 | -682.0 | -562.2 | |
| 1.99 | 4.14 | 1.15 | 2.39 | -4.73 | 85.30 | 29.71 | 254.26 | 0.5152 | -779.7 | -604.7 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -6.86 | 85.08 | 29.49 | 250.19 | 0.5215 | 695.0 | 539.9 | |
| 0.00 | 1.90 | 0.00 | 1.09 | -4.23 | 84.94 | 29.35 | 255.01 | 0.5080 | -131.0 | -138.4 | |
| 4.32 | 18.22 | 2.48 | 10.46 | -4.71 | 84.92 | 29.33 | 254.09 | 0.5097 | -959.7 | -652.1 | |
| 5.44 | -19.00 | 3.12 | -19.00 | -4.56 | 84.75 | 29.15 | 254.29 | 0.5065 | -1072.5 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -5.64 | 84.76 | 29.17 | 252.25 | 0.5114 | -823.0 | -700.6 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -13.56 | 84.08 | 28.49 | 237.97 | 0.5491 | 662.0 | 484.9 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -6.97 | 81.17 | 25.57 | 247.21 | 0.4667 | -809.0 | -621.6 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -8.74 | 79.19 | 23.60 | 241.92 | 0.4504 | -938.0 | -682.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -8.82 | 78.94 | 23.35 | 241.49 | 0.4475 | -822.0 | -712.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
