SDO HMI 2014-11-07 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.92 | 0.00 | 3.52 | -18.90 | 95.53 | 40.49 | 238.50 | 0.7201 | -355.6 | -228.9 | |
|
previous
or next observation for the same group /

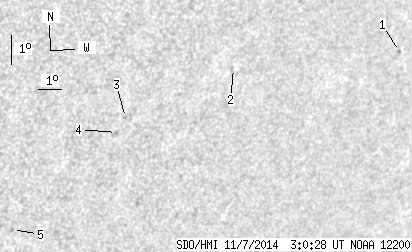

back to the solar disc SDO HMI 2014-11-07 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.99 | -17.18 | 103.92 | 48.88 | 244.98 | 0.7965 | 617.0 | 572.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -17.36 | 96.60 | 41.56 | 241.45 | 0.7232 | -494.0 | -479.0 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -18.74 | 92.58 | 37.54 | 237.34 | 0.6877 | -626.0 | -539.6 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -19.21 | 92.35 | 37.31 | 236.58 | 0.6880 | -605.0 | -534.0 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -22.23 | 89.09 | 34.05 | 230.46 | 0.6744 | -670.0 | -585.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
