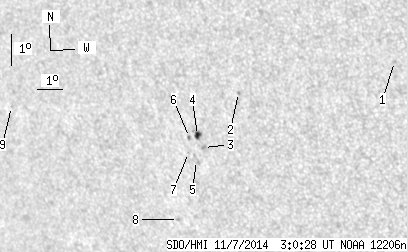

SDO HMI 2014-11-07 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.94 | 17.28 | 2.00 | 11.82 | -16.25 | 15.97 | -39.07 | 118.54 | 0.6900 | -337.2 | -347.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.79 | -13.52 | 23.94 | -31.10 | 119.83 | 0.5812 | 774.0 | 563.8 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -14.71 | 17.95 | -37.10 | 117.53 | 0.6602 | 785.0 | 612.7 | |
| 0.00 | 1.99 | 0.00 | 1.35 | -16.51 | 16.17 | -38.87 | 118.93 | 0.6898 | -844.0 | -802.0 | |
| 2.94 | 5.44 | 2.00 | 3.71 | -16.14 | 16.02 | -39.02 | 118.35 | 0.6895 | -919.8 | -697.6 | |
| 0.00 | 3.37 | 0.00 | 2.32 | -16.94 | 15.79 | -39.25 | 119.28 | 0.6963 | -49.0 | -320.3 | |
| 0.00 | 1.55 | 0.00 | 1.07 | -16.22 | 15.69 | -39.36 | 118.27 | 0.6937 | -676.0 | -552.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -16.70 | 15.53 | -39.52 | 118.81 | 0.6979 | -610.0 | -595.7 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -18.87 | 14.52 | -40.52 | 121.04 | 0.7199 | -512.0 | -424.6 | |
| 0.00 | 1.04 | 0.00 | 0.80 | -15.58 | 8.30 | -46.75 | 113.93 | 0.7698 | -400.0 | -274.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
