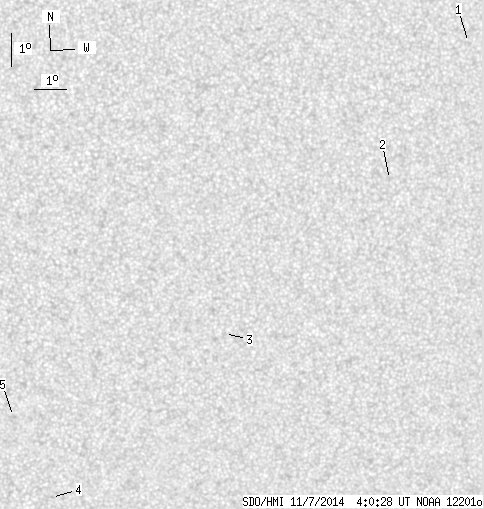

SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.91 | 0.00 | 3.66 | -12.03 | 65.71 | 11.21 | 215.59 | 0.3538 | 282.8 | 198.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.78 | -4.52 | 73.10 | 18.60 | 246.16 | 0.3492 | -9.0 | -1.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | -8.61 | 70.76 | 16.27 | 232.64 | 0.3500 | -9.0 | 6.2 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -13.25 | 65.83 | 11.34 | 213.30 | 0.3500 | 0.0 | -0.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.36 | 60.64 | 6.14 | 195.10 | 0.3914 | 779.0 | 542.8 | |
| 0.00 | 1.90 | 0.00 | 1.00 | -15.78 | 59.38 | 4.88 | 193.77 | 0.3456 | 653.0 | 471.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
