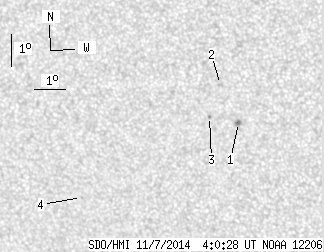

SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 5.97 | 0.33 | 3.24 | -12.90 | 36.57 | -17.92 | 133.43 | 0.4144 | 161.5 | 298.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 2.94 | 0.33 | 1.59 | -13.07 | 37.21 | -17.28 | 134.72 | 0.4090 | 1082.3 | 867.0 | |
| 0.00 | 1.47 | 0.00 | 0.79 | -11.90 | 36.72 | -17.77 | 131.78 | 0.4022 | -875.0 | -717.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -12.90 | 36.30 | -18.20 | 132.96 | 0.4177 | 772.0 | 700.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -15.53 | 31.85 | -22.64 | 131.26 | 0.4954 | -637.0 | -601.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
