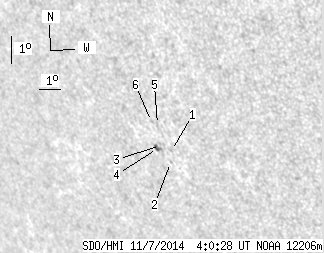

SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.07 | 0.00 | 7.39 | -23.75 | 8.46 | -46.03 | 123.95 | 0.7965 | 434.5 | 354.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.77 | -24.02 | 8.91 | -45.59 | 124.48 | 0.7937 | 484.0 | 415.4 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -24.43 | 8.67 | -45.83 | 124.82 | 0.7977 | 320.0 | 223.0 | |
| 0.00 | 1.12 | 0.00 | 0.92 | -23.87 | 8.46 | -46.03 | 124.09 | 0.7970 | 480.0 | 378.8 | |
| 0.00 | 3.63 | 0.00 | 2.97 | -23.98 | 8.27 | -46.23 | 124.12 | 0.7992 | 408.0 | 335.2 | |
| 0.00 | 1.30 | 0.00 | 1.05 | -23.17 | 8.64 | -45.85 | 123.37 | 0.7922 | 564.0 | 498.0 | |
| 0.00 | 1.38 | 0.00 | 1.12 | -23.08 | 8.40 | -46.10 | 123.15 | 0.7940 | 351.0 | 274.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
