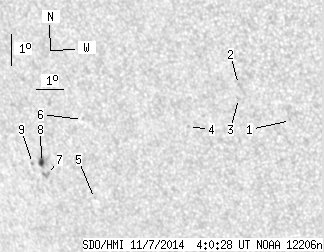

SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.02 | 15.38 | 2.04 | 10.12 | -15.78 | 17.88 | -36.61 | 119.39 | 0.6595 | -62.2 | -262.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-07 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.46 | -14.48 | 25.59 | -28.90 | 123.10 | 0.5608 | 559.0 | 515.8 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -13.42 | 23.91 | -30.59 | 120.06 | 0.5740 | 711.0 | 581.8 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -13.86 | 23.85 | -30.65 | 120.68 | 0.5777 | 649.0 | 433.1 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -14.80 | 21.89 | -32.60 | 120.61 | 0.6076 | 586.0 | 487.1 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -17.22 | 17.86 | -36.63 | 121.23 | 0.6689 | -538.0 | -433.8 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -14.73 | 17.94 | -36.56 | 117.87 | 0.6539 | 738.0 | 620.9 | |
| 0.00 | 3.28 | 0.00 | 2.22 | -16.53 | 16.14 | -38.35 | 119.25 | 0.6841 | -721.0 | -708.6 | |
| 3.02 | 6.22 | 2.04 | 4.20 | -16.15 | 16.03 | -38.46 | 118.69 | 0.6834 | -955.3 | -618.6 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -16.20 | 15.66 | -38.83 | 118.54 | 0.6877 | -660.0 | -571.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
