SDO HMI 2014-11-07 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.68 | 0.00 | 7.65 | -22.52 | 74.80 | 20.85 | 216.14 | 0.5696 | 215.6 | 287.1 | |
|
previous
or next observation for the same group /

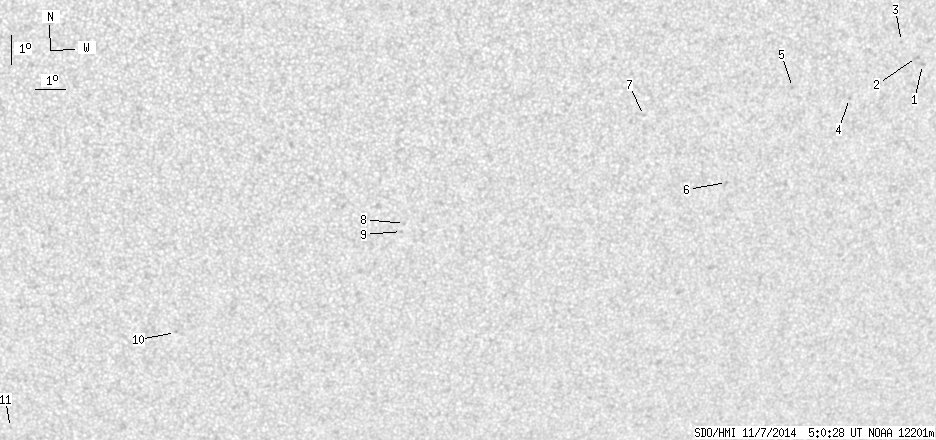

back to the solar disc SDO HMI 2014-11-07 05:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 1.07 | -20.06 | 82.80 | 28.86 | 228.86 | 0.6042 | 718.0 | 583.0 | |
| 0.00 | 2.50 | 0.00 | 1.55 | -19.82 | 82.54 | 28.59 | 228.93 | 0.5995 | 754.0 | 622.7 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -19.29 | 81.90 | 27.95 | 229.04 | 0.5881 | 584.0 | 535.2 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -21.09 | 80.39 | 26.44 | 225.12 | 0.5885 | 735.0 | 615.5 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -20.66 | 78.30 | 24.35 | 223.41 | 0.5636 | 730.0 | 631.0 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -23.75 | 76.53 | 22.59 | 217.56 | 0.5789 | 739.0 | 640.9 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -21.44 | 73.30 | 19.35 | 216.15 | 0.5250 | 708.0 | 541.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -24.89 | 65.68 | 11.73 | 201.09 | 0.5145 | -587.0 | -517.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -25.16 | 65.60 | 11.66 | 200.77 | 0.5178 | -609.0 | -539.6 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -28.57 | 58.23 | 4.28 | 186.99 | 0.5407 | -728.0 | -642.1 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -31.97 | 52.59 | -1.36 | 178.03 | 0.5864 | -672.0 | -623.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
